Compare Eicher Pro 8035 XM vs Ashok Leyland 3532 TN A-Series
Compare eicher pro 8035 xm vs ashok leyland 3532 tn a series
Eicher Pro 8035 XM

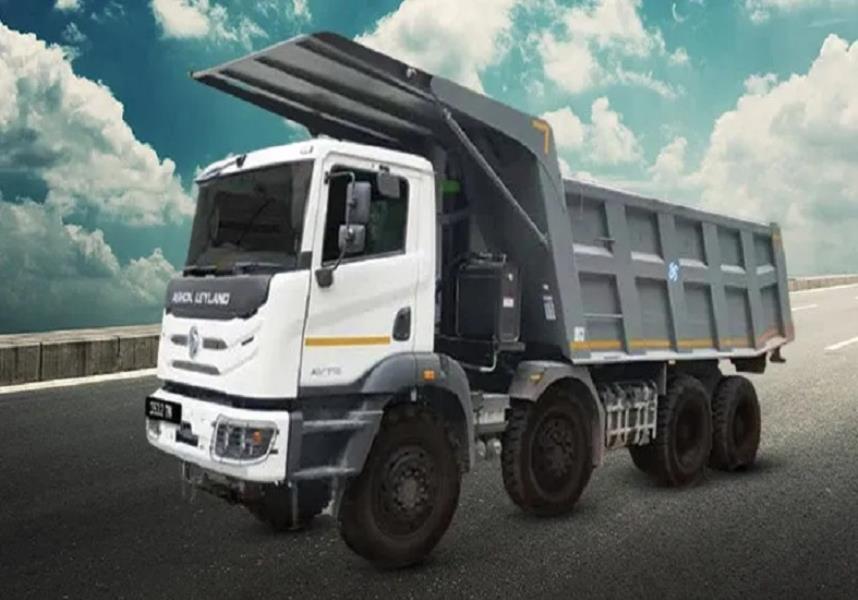

Ashok Leyland 3532 TN A-Series
Overviewof
| GVW (Kg) |
35000 Kg |
35000 Kg |
|
| Axle Configuration |
8x4 |
8X4 |
|
| Engine |
VEDX8 |
A series CRS
iGen6 technology |
|
| Power |
350 HP@2200 rpm |
320 HP@2200 rpm |
|
| Torque |
1350 Nm@1200-1600 rpm |
1200 Nm@1100-1800 rpm |
|
| Transmission |
9 speed (9F+1R) |
9 speed (9F+1R) |
|
| Variants |
Cabin with Box body
Cabin with Rock body |
Cabin with Box body
Cabin with rock body |
|
| Load Body Options |
16 / 18 Cu.M (Rock)
20 / 23 Cu.M (Box) |
23 Cu.M Box body
19 Cu.M Rock body
26 Cu.M Box body |
|
| Additional |
Fuel coaching
MBooster+ Technology for multi drive modes |
|
|
Engine & Performanceof
| Engine |
VEDX8 |
A series CRS
iGen6 technology |
|
| Fuel Injection System |
Common Rail |
Common Rail |
|
| Engine Displacement |
7698 cc |
|
|
| Power |
350 HP@2200 rpm |
320 HP@2200 rpm |
|
| Torque |
1350 Nm@1200-1600 rpm |
1200 Nm@1100-1800 rpm |
|
| Clutch |
430 mm dia
With clutch booster |
430 mm dia
Single dry plate
Organic clutch
With air assisted hydraulic booster |
|
| Transmission |
9 speed (9F+1R) |
9 speed (9F+1R) |
|
| Gradeability |
75% (Crawler) |
48.10% |
|
| Max Speed |
60 Kmph |
60 Kmph |
|
| Emission Norms Compliance |
BS6 |
|
|
| Fuel Tank Capacity |
Diesel: 315 Litres
Ad Blue: 50 Litres |
Diesel: 300 Litres |
|
| Electricals Battery |
24V, 120 Ah |
24V, 120 Ah |
|
Design & Configurationof
| Vehicle Configuration |
Cabin with Box body
Cabin with Rock body |
Cabin with Box body
Cabin with rock body |
|
| Load Body Options |
16 / 18 Cu.M (Rock)
20 / 23 Cu.M (Box) |
23 Cu.M Box body
19 Cu.M Rock body
26 Cu.M Box body |
|
| Cabin Type |
Sleeper cabin |
Tiltable day cab
N cabin |
|
| Cabin Tilt mechanism |
Hydraulically tiltable |
|
|
| Chassis Frame |
Domex frame |
Bolted ladder type |
|
| Axle Configuration |
8x4 |
8X4 |
|
| Front Axle |
Forged I Beam, Reverse Elliot Type
With Stabilizer bar |
10T zero drop |
|
| Rear Axle |
Hub reduction axle
With 2 stage differential lock |
Hub reduction
RAR 7.2:1 |
|
| Front Suspension |
Parabolic leaf springs |
Parabolic leaf springs
With shock absorbers |
|
| Rear Suspension |
Bogie suspension |
Inverted semi elliptical tandem
Bogie |
|
| Tyres |
12x20 - Mining |
12x20 ML
12x24 ML
11x20 ML (Optional) |
|
| Wheelbase |
5285 mm |
5250 mm |
|
| Turning Circle Diameter |
21.1 m |
18.94 m |
|
| Overall Length |
9090 / 8925 mm |
|
|
| Overall Width |
2590 / 2580 mm |
|
|
| Chassis Flange width |
90 mm |
|
|
Features & Comfortof
| Cabin Suspension |
Fully Suspended |
|
|
| Steering |
Power steering |
Power steering |
|
| Steering Adjustment |
Tilt and telescopic |
Tilt and telescopic |
|
| Driver Seat |
6 way adjustable
Mechanically Suspended (Standard)
Air Suspended (Optional) |
6 way adjustable |
|
| Air Conditioner (AC) |
Yes |
Optional |
|
| Quarter Ventilation Glass |
No |
|
|
| Instrument Cluster |
Digital
With fuel coaching |
Digital
With analog dials |
|
| Mobile Charging Point |
Yes |
|
|
| Automatic Transmission |
No |
No |
|
Safetyof
| Service Brakes |
Air Brakes
With automatic adjuster |
10 bar system
Drum brakes |
|
| Parking Brakes |
Pneumatically operated |
|
|
| Reverse Parking_Buzzer |
Yes |
Yes |
|
Key Comparison of Eicher Pro 8035 XM vs Ashok Leyland 3532 TN A-Series
Compare Eicher Pro 8035 XM vs Ashok Leyland 3532 TN A-Series in detail at TrucksBuses.com ! You can check detailed truck comparison of Eicher Pro 8035 XM with Ashok Leyland 3532 TN A-Series on the basis of engine, specifications, payload, price, mileage and features. Eicher Pro 8035 XM with a gross weight of , gives a power of whereas Ashok Leyland 3532 TN A-Series produces of power and comes with a GVW of . Powering the Eicher Pro 8035 XM truck is cylinder, engine whereas Ashok Leyland 3532 TN A-Series gets powered by a cylinder, engine.
