Compare Eicher Pro 8028 XM vs Eicher Pro 8028 XC

Compare eicher pro 8028 xm vs eicher pro 8028 xc

Eicher Pro 8028 XM

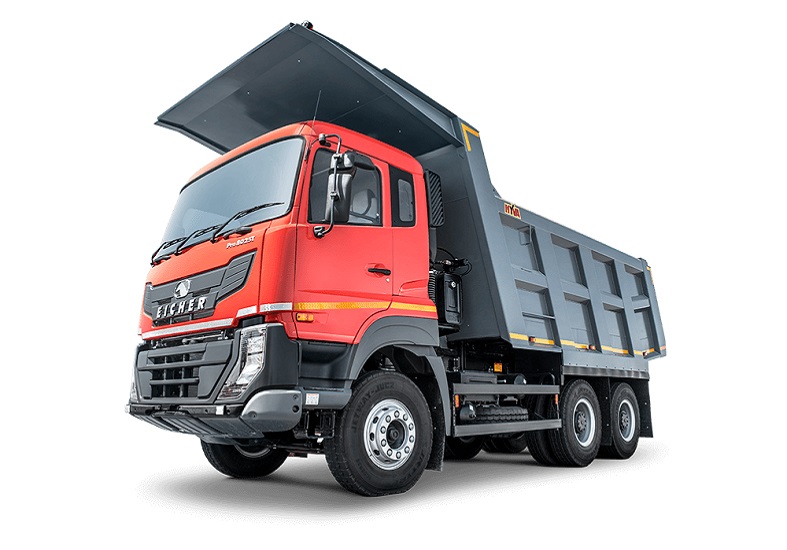

Eicher Pro 8028 XC

Eicher Pro 8028 XC

Overview
Power

350 HP@2200 rpm

300 HP@2200 rpm
Torque

1350 Nm@1200-1600 rpm

1200 Nm@1200-1600 rpm
Engine

VEDX8

VEDX8
GVW (Kg)

28000 Kg

28000 Kg
Variants

Cabin with Rock body
Cabin with Box body

Cabin and chassis
Cabin with Box body
Cabin with Rock body
Load Body Options

16 Cu.M (Rock)
20 Cu.M (Box)

14 Cu.M (Rock)
16 / 20 Cu.M (Box)
Axle Configuration

6x4

6x4
Transmission

9 speed (9F+1R)

9 speed (9F+1R)
Additional

Fuel coaching
MBooster+ Technology for multi drive modes

Fuel coaching
MBooster+ Technology for multi drive modes

Engine & Performance
Engine

VEDX8

VEDX8
Power

350 HP@2200 rpm

300 HP@2200 rpm
Torque

1350 Nm@1200-1600 rpm

1200 Nm@1200-1600 rpm
Fuel Injection System

Common Rail

Common Rail
Displacement

7698 cc

7698 cc
Cylinders

6

6
Transmission

9 speed (9F+1R)

9 speed (9F+1R)
Gearbox

ET 140 S9

ET 140 S9
Clutch

430 mm dia
With clutch booster

430 mm dia
With clutch booster
Gradeability

85% (Crawler)

68% (Crawler)
Max Speed

78 Kmph

60 Kmph
Emission

BS6

BS6
Fuel Type

Diesel

Diesel
Fuel Tank

Diesel: 315 Litres
Ad Blue: 50 Litres

Diesel: 315 Litres
Ad Blue: 50 Litres
Battery

24V, 120 Ah

24V, 120 Ah

Design & Configuration
Variants

Cabin with Rock body
Cabin with Box body

Cabin and chassis
Cabin with Box body
Cabin with Rock body
Load Body Options

16 Cu.M (Rock)
20 Cu.M (Box)

14 Cu.M (Rock)
16 / 20 Cu.M (Box)
GVW

28000 Kg

28000 Kg
Axle Configuration

6x4

6x4
Cabin Type

Sleeper cabin

Sleeper cabin
Cabin Tilt mechanism

Hydraulically tiltable

Hydraulically tiltable
Chassis Frame

Rolled form type

Domex frame
Front Axle

Forged I Beam, Reverse Elliot Type
With Stabilizer bar

Forged I Beam, Reverse Elliot Type
With Stabilizer bar
Rear Axle

Hub reduction axle
With 2 stage differential lock

Banjo type, Single reduction
Front Suspension

Parabolic leaf springs

Parabolic leaf springs
Rear Suspension

Bogie suspension

Bogie suspension
Tyres

11x20 - Mining
12x20 - Mining

11x20 - Nylon
11x20 - Mining
Wheelbase

4585 mm

4585 mm
Turning Circle Diameter

16.3 / 18.5 m

16.3 m
Ground Clearance

289 / 308 mm

255 mm
Overall Length

8430 mm

8430 / 8115 mm
Overall Width

2590 mm

2584 / 2562 mm
Chassis Depth

300 mm

300 mm
Chassis Flange width

90 mm

90 mm
Chassis Thickness

8 mm

8 mm

Features & Comfort
Steering Type

Power steering

Power steering
Steering Adjustment

Tilt and telescopic

Tilt and telescopic
Driver Seat

6 way adjustable
Mechanically Suspended (Standard)
Air Suspended (Optional)

6 way adjustable
Mechanically Suspended (Standard)
Air Suspended (Optional)
Instrument cluster

Digital
With fuel coaching

Digital
With fuel coaching
Cabin Suspension

Fully Suspended

Fully Suspended
Automatic Transmission
Telematics
Air Conditioner AC
Quarter Ventilation Glass
Mobile Charging Point
Bottle Holder
Music System
Cruise Control

Safety
Service Brakes

Air Brakes
With automatic adjuster

Air Brakes
With automatic adjuster
Parking Brakes

Pneumatically operated

Pneumatically operated
Exhaust Brake
ABS
Seat Belts
Fog Light
Tubeless Tyres

Optional

Optional
Differential Lock
Reverse Gear Buzzer

Key Comparison of Eicher Pro 8028 XM vs Eicher Pro 8028 XC

Compare Eicher Pro 8028 XM vs Eicher Pro 8028 XC in detail at TrucksBuses.com ! You can check detailed truck comparison of Eicher Pro 8028 XM with Eicher Pro 8028 XC on the basis of engine, specifications, payload, price, mileage and features. Eicher Pro 8028 XM with a gross weight of 28000 Kg, gives a power of 350 HP@2200 rpm whereas Eicher Pro 8028 XC produces 300 HP@2200 rpm of power and comes with a GVW of 28000 Kg. Powering the Eicher Pro 8028 XM truck is 7698 cc 6 cylinder, VEDX8 engine whereas Eicher Pro 8028 XC gets powered by a 6 cylinder, 7698 cc engine.
