Compare Ashok Leyland Captain 5523 vs Ashok Leyland U 5523
Compare ashok leyland captain 5523 vs ashok leyland u 5523
Ashok Leyland Captain 5523
-removebg-preview.jpg)

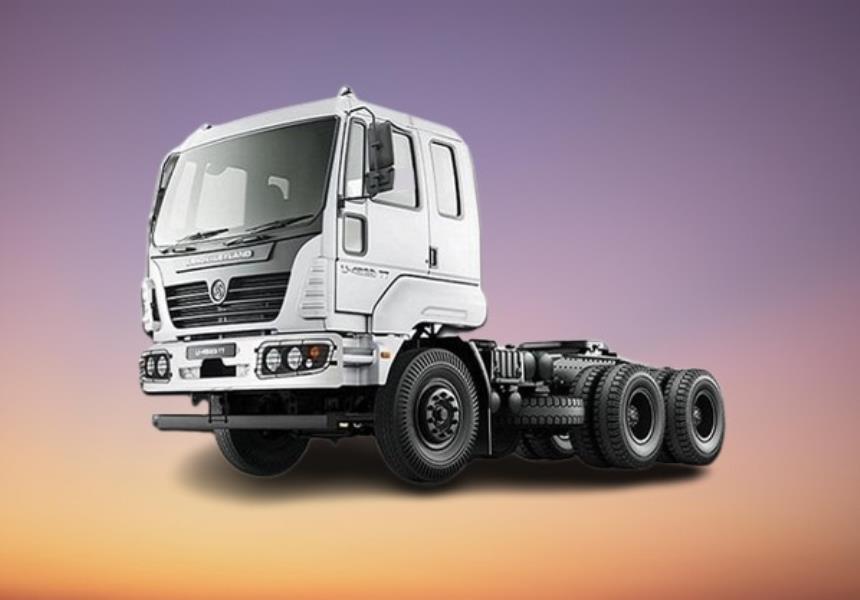

Ashok Leyland U 5523
Overviewof
| GCW (Kg) |
55000 Kg |
55000 Kg |
|
| Axle Configuration |
6x4 |
6x4 |
|
| Engine |
N Series CRS
iEGR Technology |
H Series 5.7L CRS
iEGR Technology |
|
| Power |
225 HP@2200 rpm |
225 HP@2400 rpm |
|
| Torque |
900 Nm@1100-1700 rpm |
800 Nm@1300-1900 rpm |
|
| Transmission |
9 speed manual (8F+1CR+1R) |
9 speed manual (8F+1CR+1R) |
|
| Warranty |
4 Years / 4 Lakh Km |
4 Years / 4 Lakh Km |
|
| Service Interval |
80,000 Km (Oil change) |
80,000 Km (Oil change) |
|
Engine & Performanceof
| Engine |
N Series CRS
iEGR Technology |
H Series 5.7L CRS
iEGR Technology |
|
| Fuel Injection System |
Common Rail |
Common Rail |
|
| Power |
225 HP@2200 rpm |
225 HP@2400 rpm |
|
| Torque |
900 Nm@1100-1700 rpm |
800 Nm@1300-1900 rpm |
|
| Clutch |
Single plate, 380 mm dia
With clutch booster |
Single plate, 380 mm dia
With clutch booster |
|
| Transmission |
9 speed manual (8F+1CR+1R) |
9 speed manual (8F+1CR+1R) |
|
| Emission Norms Compliance |
BSIV |
BSIV |
|
| Fuel Tank Capacity |
400 Litres
Polymer tank |
400 Litres
Polymer tank |
|
| Electricals Battery |
2x12V |
2x12V |
|
Design & Configurationof
| Gross Combination Weight |
55000 Kg |
55000 Kg |
|
| Cabin Type |
Sleeper cabin with 4 point suspension |
Twin sleeper cabin |
|
| Cabin Tilt mechanism |
Tiltable Cabin |
Tiltable Cabin |
|
| Chassis Frame |
Ladder type joggled bolted with cross members |
Ladder type joggled bolted with cross members |
|
| Axle Configuration |
6x4 |
6x4 |
|
| Front Axle |
Forged I Beam, Reverse Elliot Type |
Forged I Beam, Reverse Elliot Type |
|
| Rear Axle |
Fully floating single-speed hypoid
RAR 5.83:1 |
Fully Floating,Single speed hypoid |
|
| Front Suspension |
Parabolic leaf springs |
Parabolic leaf springs
With telescopic shock absorbers |
|
| Rear Suspension |
Semi-elliptical leaf springs
Bogie (Optional) |
Semi-elliptical leaf springs
Bogie suspension (Optional) |
|
| Tyres |
Front : 295/80 R 22.5 Tubeless
Rear : 10R20 Radial
11R20 (Optional for front and rear) |
Front: 295/80 R22.5 Tubeless
Rear: 10R20 |
|
| Wheelbase |
3900 mm |
3900 mm |
|
| Turning Circle Diameter |
16.62 m |
18 m |
|
| Ground Clearance |
260 mm |
260 mm |
|
| Overall Length |
6850 mm |
6870 mm |
|
| Overall Width |
2500 mm |
2445 mm |
|
| Front Overhang |
1500 mm |
1520 mm |
|
| Rear Overhang |
750 mm |
739 mm |
|
| Front Track |
2044 mm |
2044 mm |
|
| Rear Track |
1870 mm |
1870 mm |
|
| Chassis Depth |
279 mm |
279 mm |
|
| Chassis Flange width |
90 mm |
90 mm |
|
| Chassis Thickness |
8 mm |
8 mm |
|
Features & Comfortof
| Cabin Suspension |
Fully suspended |
Fully suspended |
|
| Steering |
Power Steering |
Power Steering |
|
| Steering Adjustment |
Tilt and telescopic |
Tilt and telescopic |
|
| Driver Seat |
6 way adjustable |
|
|
| Air Conditioner (AC) |
Optional |
Optional |
|
| Quarter Ventilation Glass |
No |
Yes |
|
| Instrument Cluster |
Digital
With distance to empty indicator |
Analog
With LED display |
|
| Music System |
Yes |
Optional |
|
| Mobile Charging Point |
Yes |
|
|
| Automatic Transmission |
No |
No |
|
Safetyof
| Service Brakes |
Air Brakes, dual line |
Air Brakes, dual line HLP |
|
| Parking Brakes |
Flick valve operated pneumatic
Acting on rear wheels |
Flick valve operated pneumatic
Acting on rear wheels |
|
| Tubeless Tyres |
Optional |
Optional |
|
Key Comparison of Ashok Leyland Captain 5523 vs Ashok Leyland U 5523
Compare Ashok Leyland Captain 5523 vs Ashok Leyland U 5523 in detail at TrucksBuses.com ! You can check detailed truck comparison of Ashok Leyland Captain 5523 with Ashok Leyland U 5523 on the basis of engine, specifications, payload, price, mileage and features. Ashok Leyland Captain 5523 with a gross weight of , gives a power of whereas Ashok Leyland U 5523 produces of power and comes with a GVW of . Powering the Ashok Leyland Captain 5523 truck is cylinder, engine whereas Ashok Leyland U 5523 gets powered by a cylinder, engine.
