Compare AMW 4923 TR vs BharatBenz 5028T
Compare amw 4923 tr vs bharatbenz 5028t
AMW 4923 TR

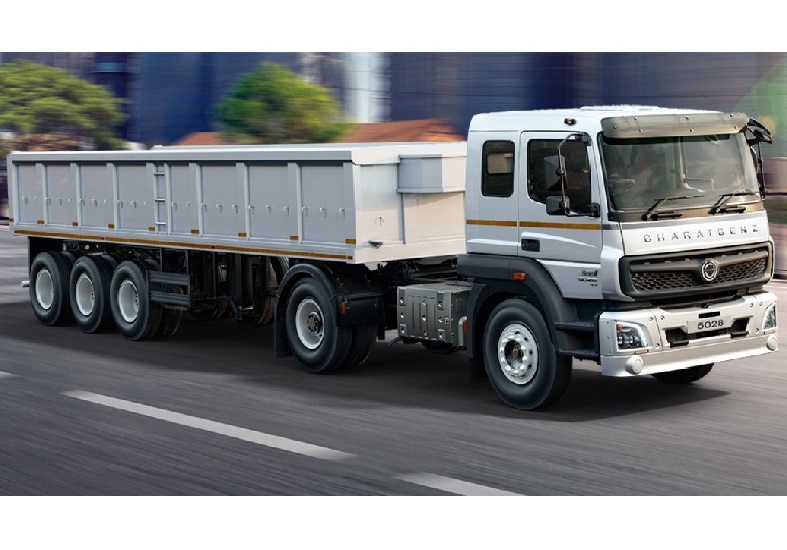

BharatBenz 5028T
Overviewof
| GCW (Kg) |
49000 Kg |
50000 Kg |
|
| Axle Configuration |
6x4 |
4x2 |
|
| Engine |
Cummins B5.9
Direct Injection, Turbo-charged |
OM 926 |
|
| Power |
235 HP@2500 rpm |
281 HP |
|
| Torque |
836 Nm@1500 rpm |
1100 Nm |
|
| Transmission |
9 speed manual (8F+ 1CR+1R) |
9 speed (9F+1R) |
|
| Warranty |
|
6 Years / 6 Lakh km on driveline
3 Years / 3 Lakh km on vehicle |
|
| Service Interval |
|
60,000 Km (Oil change) |
|
| Additional |
|
Gear Shift Indicator |
|
Engine & Performanceof
| Engine |
Cummins B5.9
Direct Injection, Turbo-charged |
OM 926 |
|
| Fuel Injection System |
Rotary FIP |
Unitised fuel injection pump |
|
| Engine Displacement |
5883 cc |
7200 cc |
|
| Power |
235 HP@2500 rpm |
281 HP |
|
| Torque |
836 Nm@1500 rpm |
1100 Nm |
|
| Clutch |
Single Dry Plate, 380 mm dia
Hydro Pneumatically operated |
430 mm dia
With clutch booster |
|
| Transmission |
9 speed manual (8F+ 1CR+1R) |
9 speed (9F+1R) |
|
| Gearbox |
9S1110 ZF
Synchromesh gears |
G131, Synchromesh |
|
| Max Speed |
60 Kmph |
80 Kmph |
|
| Emission Norms Compliance |
BSIII |
BS6 |
|
| Fuel Tank Capacity |
400 Litres |
Diesel: 455 Litres
Ad Blue: 60 / 51 Litres
With diesel anti-theft strain |
|
| Electricals Battery |
2X12V,130 Ah
Alternator: 75 Amps |
24V, 120 Ah |
|
Design & Configurationof
| Gross Combination Weight |
49000 Kg |
50000 Kg |
|
| Cabin Type |
Sleeper cabin |
Sleeper cabin |
|
| Cabin Tilt mechanism |
Tiltable Cabin |
Hydraulically tiltable |
|
| Chassis Frame |
Ladder type bolted with cross members |
Channel section with cross members |
|
| Axle Configuration |
6x4 |
4x2 |
|
| Front Axle |
Forged I Beam, Reverse Elliot Type |
IF 7.0 Reverse Elliot Type |
|
| Rear Axle |
Fully Floating with Hyphoid Bevel Gears |
MT36 610, Hub Reduction
RAR 4.55 |
|
| Front Suspension |
Semi-elliptical leaf springs
With telescopic shock absorbers |
Parabolic leaf springs
With telescopic shock absorbers |
|
| Rear Suspension |
Inverted semi-elliptical leaf springs |
Semi elliptical leaf springs |
|
| Tyres |
10X20-16 PR |
11R20
295/80 R22.5 Tubeless (Optional)
6+1 tyres |
|
| Wheelbase |
3850 mm |
3600 mm |
|
| Turning Circle Diameter |
16.9 m |
13.9 m |
|
| Ground Clearance |
270 mm |
304 mm |
|
| Overall Length |
6610 mm |
6063 mm |
|
| Overall Width |
2494 mm |
2490 mm |
|
| Overall Height |
3050 mm |
2960 mm |
|
| Front Overhang |
1360 mm |
1485 mm |
|
| Rear Overhang |
1400 mm |
978 mm |
|
| Chassis Depth |
270 mm |
288 mm |
|
| Chassis Flange width |
82 mm |
70 mm |
|
| Chassis Thickness |
7 mm (inner liner of 7 mm) |
9 mm |
|
Features & Comfortof
| Cabin Suspension |
|
Fully Suspended |
|
| Steering |
Power Steering |
Power Steering |
|
| Steering Adjustment |
Tilt and telescopic |
Tilt and telescopic |
|
| Driver Seat |
High headrest seat |
6 way adjustable
Air suspended seat (Optional) |
|
| Air Conditioner (AC) |
Yes |
HVAC (Optional) |
|
| Quarter Ventilation Glass |
Yes |
No |
|
| Instrument Cluster |
|
Digital with indicators for:
Mileage
Reverse gear indication
Distance to empty |
|
| Music System |
FM player |
Yes |
|
| Mobile Charging Point |
|
Yes |
|
| Automatic Transmission |
No |
No |
|
Safetyof
| Service Brakes |
Air Brakes, dual line |
Air brakes |
|
| Parking Brakes |
Spring brake
Acting on rear wheel |
Pneumatically operated |
|
| Reverse Parking_Buzzer |
|
Yes |
|
| Tubeless Tyres |
No |
Optional |
|
