Compare Tata Signa 5325.S vs Ashok Leyland 5225

Compare Tata Signa 5325 S vs Ashok Leyland 5225


https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/5887_93f3c0afc74c4490a842136e7580614btata-signa-5325-tractor-trailer-truck.jpg

Tata Signa 5325.S

https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/5889_859b1097b79743578b2e6986bdb827eeAshok-leyland-5225-tractor-trailer-truck.jpg

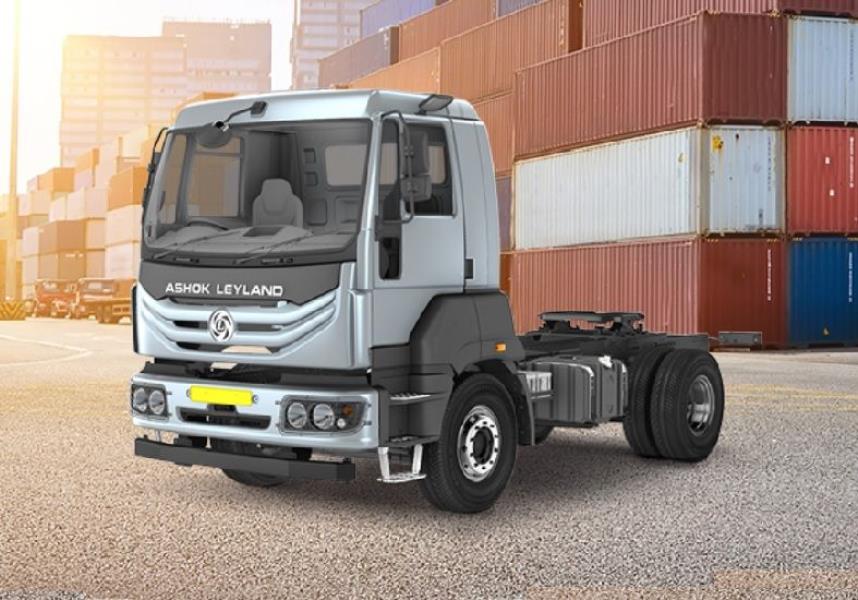

Ashok Leyland 5225

  • Overviewof Tata Signa 5325 S vs Ashok Leyland 5225

  • Power
    250 HP@2300 rpm
    250 HP
  • Torque
    950 Nm@1000-1800 rpm
    900 Nm
  • Engine
    Cummins ISBe 6.7L
    H / A series CRS
    iGen-6 technology
  • GCW (Kg)
    53000 Kg
    52000 Kg
  • Axle Configuration
    4x2
    4x2
  • Transmission
    9 speed (9F+1R)
    9 speed (9F+1R)
    With cable shift
  • Warranty
    6 Years / 6 Lakh km on driveline
    3 Years / 3 Lakh km on vehicle
    4 Years / 4 Lakh Km
  • Service Interval
    80,000 Km (Oil change)
    80,000 Km (Oil change)
  • Additional
    Gear Shift Advisor
    3 mode Fuel Economy Switch
    Hill Start Assist
    Gear Shift Advisor
  • Engine & Performanceof Tata Signa 5325 S vs Ashok Leyland 5225

  • Engine
    Cummins ISBe 6.7L
    H / A series CRS
    iGen-6 technology
  • Power
    250 HP@2300 rpm
    250 HP
  • Torque
    950 Nm@1000-1800 rpm
    900 Nm
  • Fuel Injection System
    Common Rail
    Common Rail
  • Displacement
    6692 cc
    5300 cc
  • Cylinders
    6
    6 cylinder
    4 cylinder (optional)
  • Transmission
    9 speed (9F+1R)
    9 speed (9F+1R)
    With cable shift
  • Gearbox
    G1150
    ZF 9S
  • Clutch
    430 mm dia
    Organic
    395 mm dia
    With clutch booster
  • Max Speed
    80 Kmph
    80 Kmph
  • Emission
    BS6
    BS6
  • Fuel Type
    Diesel
    Diesel
  • Fuel Tank
    365 Litres
    365+192 Litres (Optional)
    Polymer tank
    With anti-fuel theft
    Diesel: 220 / 300 / 375 Litres
    Ad Blue: 48 Litres
    Polymer tank
  • Battery
    2x12V,100 Ah
    24V, 120 Ah / 150 Ah (AC)
  • Design & Configurationof Tata Signa 5325 S vs Ashok Leyland 5225

  • Axle Configuration
    4x2
    4x2
  • Cabin Type
    Sleeper cabin
    Sleeper cabin
  • Chassis Frame
    Ladder type straight frame
    HSS material, bolted construction
  • Front Axle
    Forged I Beam, Reverse Elliot Type
    Forged I Beam, Reverse Elliot Type
    Unitized wheel bearings (Optional)
  • Rear Axle
    Single reduction RA 110RR
    RAR: 5.57
    Fully floating, Single speed
    RAR 6.17
    Unitized wheel bearings (Optional)
  • Front Suspension
    Parabolic leaf springs
    Semi elliptical leaf springs
    Parabolic leaf spring (Optional)
  • Rear Suspension
    Semi elliptical leaf springs
    Semi elliptical leaf springs
    Parabolic helper spring
  • Anti Roll Bar
    Optional in front
  • Tyres
    295/90R20 (Tube)
    6+1 tyres
    295/90R20 (Tube)
    6+1 tyres
  • Wheelbase
    3320 mm
    3400 mm
  • Turning Circle Diameter
    12.6 m
  • Ground Clearance
    260 mm
  • Overall Length
    5653 mm
    5950 mm
  • Overall Width
    2565 mm
    2570 mm
  • Overall Height
    3145 mm (M Cabin)
    3165 mm (U Cabin)
    3110 mm (N Cabin)
  • Front Overhang
    953 mm
    1550 mm
  • Rear Overhang
    1000 mm
  • Front Track
    2084 mm
  • Rear Track
    1876 mm
  • Chassis Depth
    285 mm
    275 mm
  • Chassis Flange width
    65 mm
    75 mm
  • Chassis Thickness
    7 mm
    7 / 8 mm
  • Features & Comfortof Tata Signa 5325 S vs Ashok Leyland 5225

  • Steering Type
    Power Steering
    Power Steering
  • Steering Adjustment
    Tilt and telescopic
    Rigid (In Cowl)
    Tilt and telescopic (U / N cab)
  • Driver Seat
    4 way adjustable
    Mechanically suspended
  • Instrument cluster
    Digital
    With mileage indicator
    Distance to empty
    Digital
    With mileage indicator
  • Cabin Suspension
    Fully suspended
  • Automatic Transmission
  • Telematics
  • Quarter Ventilation Glass
  • Mobile Charging Point
  • Bottle Holder
  • Music System
    Touchscreen infotainment system (Optional)
  • Cruise Control
  • Safetyof Tata Signa 5325 S vs Ashok Leyland 5225

  • Service Brakes
    Air brakes
    Air brakes
    With ASA
  • Parking Brakes
    Graduated valve controlled spring brake
    Acting on rear axle
    Acting on rear axle
  • Exhaust Brake
    Engine brake fitted
  • ABS
  • Seat Belts
  • Fog Light
  • Anti Roll Bar
    Optional in front
  • Tubeless Tyres
    Optional
    Optional
  • Differential Lock
  • Reverse Gear Buzzer

Key Comparison of Tata Signa 5325.S vs Ashok Leyland 5225

Compare Tata Signa 5325.S vs Ashok Leyland 5225 in detail at TrucksBuses.com ! You can check detailed truck comparison of Tata Signa 5325.S with Ashok Leyland 5225 on the basis of engine, specifications, payload, price, mileage and features. Tata Signa 5325.S with a gross weight of , gives a power of 250 HP@2300 rpm whereas Ashok Leyland 5225 produces 250 HP of power and comes with a GVW of . Powering the Tata Signa 5325.S truck is 6692 cc 6 cylinder, H / A series CRS# iGen-6 technology engine whereas Ashok Leyland 5225 gets powered by a 6 cylinder# 4 cylinder (optional) cylinder, 5300 cc engine.
