Compare Ashok Leyland 4825 vs Ashok Leyland 4825 10x2 DTLA Tipper
Compare Ashok Leyland 4825 vs ashok leyland 4825 10x2 dtla tipper
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/4330_ashok-leyland-4825-16-wheeler-truck.jpg]()
Ashok Leyland 4825
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/17917_d6b2579f97594003ab6dea107b8d8e8eashok-leyland-4825-tipper.jpeg]()

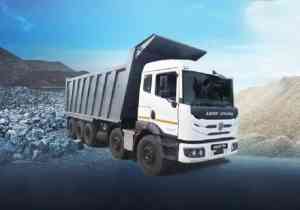

Ashok Leyland 4825 10x2 DTLA Tipper
-
Overviewof Ashok Leyland 4825 vs ashok leyland 4825 10x2 dtla tipper
-
Power
250 HP
248 HP
-
Torque
900 Nm
900 Nm@1100-1800 rpm
-
Engine
H / A series CRS iGen-6 technology
A series CRS iGen-6 technology
-
GVW (Kg)
47500 Kg
47500 Kg
-
Variants
Cabin and chassis Cabin with load body
Cabin with Box body
-
Load Body Options
Fixed Side Deck High Side Deck
29 / 23 / 18 Cu.M Box body
-
Body Length
28 ft 30 ft
-
Axle Configuration
10x2
10x2
-
Transmission
9 speed (9F+1R)
-
Warranty
4 Years / 4 Lakh Km
-
Service Interval
80,000 Km (Oil change)
-
Additional
Gear Shift Advisor
Gear Shift Advisor
-
Engine & Performanceof Ashok Leyland 4825 vs ashok leyland 4825 10x2 dtla tipper
-
Engine
H / A series CRS iGen-6 technology
A series CRS iGen-6 technology
-
Power
250 HP
248 HP
-
Torque
900 Nm
900 Nm@1100-1800 rpm
-
Fuel Injection System
Common Rail
Common Rail
-
Displacement
5660 cc (H Series engine) 5300 cc (A Series engine)
5300 cc
-
Cylinders
6 cylinder (H series engine) 4 cylinder (A series engine)
4
-
Transmission
9 speed (9F+1R) With cable shift
9 speed (9F+1R)
-
Gearbox
ZF 9S 1110
9S
-
Clutch
380 mm dia (with H series engine) 395 mm dia (with A series engine) With clutch booster
395 mm dia
-
Gradeability
23.3%
-
Max Speed
80 Kmph
60 Kmph
-
Emission
BS6
BS6
-
Fuel Type
Diesel
Diesel
-
Fuel Tank
Diesel: 220 / 300 / 375 Litres Ad Blue: 48 Litres Polymer tank
Diesel: 300 Litres Ad Blue: 24 Litres Polymer tank
-
Battery
24V, 120 Ah / 150 Ah (AC)
24V, 120 Ah / 150 Ah (AC)
-
Design & Configurationof Ashok Leyland 4825 vs ashok leyland 4825 10x2 dtla tipper
-
Variants
Cabin and chassis Cabin with load body
Cabin with Box body
-
Load Body Options
Fixed Side Deck High Side Deck
29 / 23 / 18 Cu.M Box body
-
Body Length
28 ft 30 ft
-
GVW
47500 Kg
47500 Kg
-
Axle Configuration
10x2
10x2
-
Cabin Type
Sleeper cabin
Sleeper cabin
-
Cabin Tilt mechanism
Hydraulically tiltable
Hydraulically tiltable
-
Chassis Frame
HSS material, bolted construction
HSS material, bolted construction
-
Front Axle
Forged I Beam, Reverse Elliot Type Unitized wheel bearings (Optional)
Forged I Beam, Reverse Elliot Type
-
Rear Axle
Fully floating, Single speed RAR 5.83 Unitized wheel bearings (Optional)
Fully floating, Single speed RAR 5.86
-
Front Suspension
Semi elliptical leaf springs Parabolic leaf spring (Optional)
Semi elliptical leaf springs Parabolic leaf spring (Optional)
-
Rear Suspension
Semi elliptical leaf springs Parabolic helper spring Slipper suspension (Optional)
Semi elliptical leaf springs
-
Anti Roll Bar
Optional in front
Front
-
Tyres
295/90R20 (Tube) 16+1 tyres
11R20 11x20 16+1 tyres
-
Wheelbase
6600 mm
6600 mm
-
Turning Circle Diameter
23.7 m
-
Ground Clearance
253 mm
-
Overall Length
10900 mm (28 ft) 11500 mm (30 ft)
-
Overall Width
2570 mm
-
Overall Height
3110 mm
-
Front Overhang
1550 mm
-
Front Track
2084 mm
-
Rear Track
1876 mm
-
Chassis Depth
275 mm
275 mm
-
Chassis Flange width
75 mm
75 mm
-
Chassis Thickness
8+6 mm
8+6 mm
-
Features & Comfortof Ashok Leyland 4825 vs ashok leyland 4825 10x2 dtla tipper
-
Steering Type
Power Steering
Power Steering
-
Steering Adjustment
Rigid (In Cowl) Tilt and telescopic (U / N cab)
-
Instrument cluster
Digital With mileage indicator
Digital With mileage indicator
-
Cabin Suspension
Fully suspended
Fully suspended
-
Automatic Transmission
-
Telematics
-
Air Conditioner AC
Optional
Optional
-
Mobile Charging Point
-
Bottle Holder
-
Cruise Control
Key Comparison of Ashok Leyland 4825 vs Ashok Leyland 4825 10x2 DTLA Tipper
Compare Ashok Leyland 4825 vs Ashok Leyland 4825 10x2 DTLA Tipper in detail at TrucksBuses.com ! You can check detailed truck comparison of Ashok Leyland 4825 with Ashok Leyland 4825 10x2 DTLA Tipper on the basis of engine, specifications, payload, price, mileage and features. Ashok Leyland 4825 with a gross weight of 47500 Kg, gives a power of 250 HP whereas Ashok Leyland 4825 10x2 DTLA Tipper produces 248 HP of power and comes with a GVW of 47500 Kg. Powering the Ashok Leyland 4825 truck is 5660 cc (H Series engine)# 5300 cc (A Series engine) 6 cylinder (H series engine)# 4 cylinder (A series engine) cylinder, A series CRS# iGen-6 technology engine whereas Ashok Leyland 4825 10x2 DTLA Tipper gets powered by a 4 cylinder, 5300 cc engine.
