Compare SML Isuzu GS School Bus 5100 : 38 / 52 Seater vs Tata Cityride School LP 810: 51 Seater
Compare sml isuzu gs school bus 5100 38 52 seater vs Tata Cityride School LP 810 51 Seater
SML Isuzu GS School Bus 5100 : 38 / 52 Seater

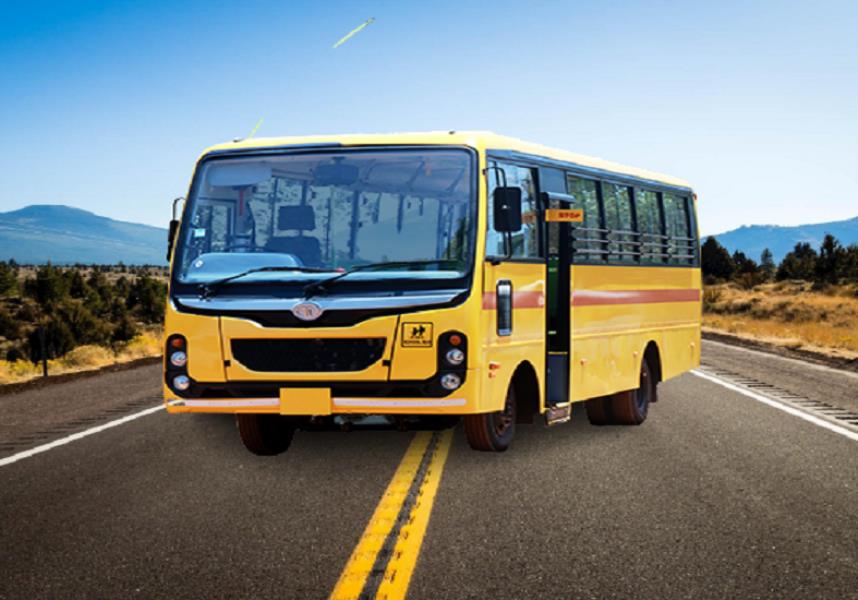

Tata Cityride School LP 810: 51 Seater
Overviewof
Seating Capacity |
38+D (2x2); 52+D (3x2) |
51+D |
|
Engine |
SLT6 CRDI TCIC |
4SP CR |
|
Power |
100 HP @ 2600 rpm |
99 HP@2800 rpm |
|
Torque |
310 Nm @ 1600 rpm |
300 Nm@1400-2200 rpm |
|
|
Schools and colleges |
School, Colleges |
|
Warranty |
3 Years/Unlimited Km on engine and gearbox 2 years on vehicle |
5 Years / 5 Lakh Km on driveline |
|
Service Interval |
N/A |
40,000 Km (Oil change) |
|
Additional |
N/A |
Gear shift advisor Fuel economy switch |
|
Engine & Performanceof
Engine |
SLT6 CRDI TCIC |
4SP CR |
|
Fuel Injection System |
Common Rail |
Common Rail |
|
Engine Displacement |
3455 cc |
2956 cc |
|
Engine Location |
Front |
Front |
|
Power |
100 HP @ 2600 rpm |
99 HP@2800 rpm |
|
Torque |
310 Nm @ 1600 rpm |
300 Nm@1400-2200 rpm |
|
Clutch |
Dry single plate |
280 mm dia |
|
Transmission |
5 speed manual (5F+1R) |
5 speed (5F+1R) |
|
Gearbox |
Synchromesh |
GB 400 Cable Shift |
|
Emission Norms Compliance |
BS6 |
BS6 |
|
Fuel Tank Capacity |
90 Litres (Diesel) 15 Litres (Ad-Blue) |
120 Litres |
|
Electricals Battery |
12V, 70 Ah |
12V-100 Ah, 75 Amp |
|
Design & Configurationof
Seating Layout |
2x2 3x2 |
3x2 |
|
Seating Capacity |
38+D (2x2); 52+D (3x2) |
51+D |
|
Passenger Door Type |
Jack-knife type |
Jack knife type |
|
Floor Type |
Anti-skid flooring |
Anti skid vinyl |
|
Chassis Frame |
Box type |
Ladder type |
|
Axle Configuration |
N/A |
4x2 |
|
Front Axle |
Forged I section, Reverse Elliot type |
Forged I section, Reverse Elliot type |
|
Front Suspension |
Semi elliptical leaf springs With telescopic shock absorbers |
Parabolic leaf springs |
|
Rear Suspension |
Semi elliptical leaf springs With telescopic shock absorbers |
Parabolic leaf springs |
|
Tyres |
8.25x16 6+1 tyres |
225/75 R17.5 Tubeless radial |
|
Wheelbase |
5100 mm |
5200 mm |
|
Turning Circle Diameter |
19 m |
17.5 m |
|
Overall Length |
9204 mm |
9730 mm |
|
Overall Width |
2262 mm |
2200 mm |
|
Overall Height |
2860 mm |
2910 mm |
|
Front Overhang |
N/A |
1430 mm |
|
Rear Overhang |
N/A |
3100 mm |
|
Features & Comfortof
Steering |
Power Steering |
Power Steering |
|
Steering Adjustment |
Tilt and telescopic |
Tilt and telescopic |
|
Instrument Cluster |
N/A |
Digital With mileage indicator Distance to empty |
|
Automatic Transmission |
No |
No |
|
Air Conditioner (AC) |
N/A |
No |
|
Front Windshield |
Single piece laminated glass |
Single piece laminated glass |
|
Rear_Windshield |
Single piece tempered glass |
Single piece tempered glass |
|
Side Windows |
Sliding glass |
Sliding glass |
|
Passenger Seat |
N/A |
Bench seats |
|
Bottle Holder |
Available on each seat |
Available on each seat |
|
Bell Switch |
N/A |
1 no. on stanchion pipe |
|
Saloon Light |
N/A |
LED lights |
|
Safetyof
Service Brakes |
Air brakes With auto slack adjuster |
Air brakes |
|
Seat Belts |
N/A |
Flap type on front seats |
|
Grab Handle |
Available on each seat |
Available on each seat |
|
Fire Extinguisher |
Yes |
Yes |
|
Reverse Parking_Buzzer |
N/A |
Yes |
|
Key Comparison of SML Isuzu GS School Bus 5100 : 38 / 52 Seater vs Tata Cityride School LP 810: 51 Seater
Compare SML Isuzu GS School Bus 5100 : 38 / 52 Seater bus vs Tata Cityride School LP 810: 51 Seater bus in detail at TrucksBuses.com ! SML Isuzu GS School Bus 5100 : 38 / 52 Seater bus with engine gives a power of whereas Tata Cityride School LP 810: 51 Seater bus produces of power and comes with a engine. The fuel tank capacity of SML Isuzu GS School Bus 5100 : 38 / 52 Seater bus is whereas Tata Cityride School LP 810: 51 Seater bus is . You can check detailed bus comparison of SML Isuzu GS School Bus 5100 : 38 / 52 Seater bus and Tata Cityride School LP 810: 51 Seater bus on the basis of engine, specifications, seating capacity, price, mileage and features.
