Compare Eicher 10.90L CNG : Starline School 40 / 51 Seater vs SML Isuzu S7 CNG School 5100: 38 / 52 / 59 Seater

Compare eicher 10 90l cng starline school 40 51 seater vs SML Isuzu S7 CNG School 5100 38 52 59 Seater

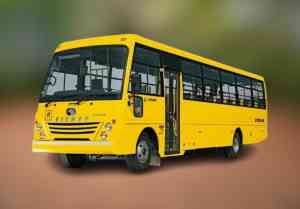

Eicher 10.90L CNG : Starline School 40 / 51 Seater

SML Isuzu S7 CNG School 5100: 38 / 52 / 59 Seater

Eicher 10.90L CNG : Starline School 40 / 51 Seater

SML Isuzu S7 CNG School 5100: 38 / 52 / 59 Seater

Overviewof

	Schools and colleges
Engine	E483 CNG	SLT6 CNG
GVW (Kg)	8850 Kg
Power	83 HP@3200 rpm	107 HP
Seating Capacity	40+D (2x2); 51+D (3x2)	38+D (2x2) 52+D (3x2) 59+D (3x3)
Service Interval	20,000 Km
Torque	230 Nm@1600 rpm	315 Nm
Warranty	3 Years / Unlimited Km on engine and gearbox 1.5 Years / 1.5 Lakh Km on body	3 Years Unlimited Km on engine and gearbox 2 Years on vehicle

Engine & Performanceof

Clutch	275 mm dia	Dry single plate
Electricals Battery	12V, 130 Ah 75 Amps
Emission Norms Compliance	BSIV	BS6
Engine	E483 CNG	SLT6 CNG
Engine Cylinders	4	4
Engine Displacement	3298 cc	3455 cc
Engine Location	Front	Front
Fuel Tank Capacity	500 Litres
Fuel Type	CNG	CNG
Gearbox	Synchromesh type With hybrid gear shift lever	Synchromesh
Power	83 HP@3200 rpm	107 HP
Torque	230 Nm@1600 rpm	315 Nm
Transmission	5 speed manual (5F+1R)	5 speed (5F+1R)

Design & Configurationof

Anti Roll Bar	Rear only
Axle Configuration	4x2	4x2
Chassis Frame	Ladder type modular frame	Box type
Floor Height	880 mm
Floor Type	Chequered flooring	Anti-skid flooring
Front Axle	Forged I section, Reverse Elliot type	Forged I section, Reverse Elliot type
Front Overhang	1005 mm	1180 mm
Front Suspension	Semi elliptical leaf springs With telescopic shock absorbers	Semi elliptical leaf springs
Front Track	1645 mm	1674 mm
Ground Clearance	210 mm	228 mm
GVW	8850 Kg	8800 Kg
Overall Height	2700 mm	2960 mm 3060 mm (AC option)
Overall Length	9344 mm	9280 mm
Overall Width	2164 mm	2262 mm
Passenger Door Type	One jack-knife type	Jack-knife type
Rear Axle	Fully floating Banjo type axle
Rear Overhang	3099 mm	3000 mm
Rear Suspension	Semi elliptical leaf springs With telescopic shock absorbers	Semi elliptical leaf springs
Rear Track	1525 mm	1486 mm
Seating Capacity	40+D (2x2); 51+D (3x2)	38+D (2x2) 52+D (3x2) 59+D (3x3)
Seating Layout	2x2 3x2	2x2 3x2 3x3
Turning Circle Diameter	17.9 m	19 m
Tyres	8.25x16 - 16PR 6+1 tyres	8.25x16 - 16 PR 6+1 tyres
Wheelbase	5165 mm	5100 mm

Features & Comfortof

AC Vents	NA
Air Conditioner (AC)	No	Optional
Arm Rests	Available on front seats	Available on all seats
Automatic Transmission	No	No
Front Windshield	Single piece laminated glass	Single piece laminated glass
Hatrack	Tubular	Tubular
Instrument Cluster	Analog With LED display	Analog With LED display
Passenger Seat	Bench seats	Bench Seat High back (Optional)
Quarter Ventilation Glass	Yes	No
Rear_Windshield	Single piece tempered glass	Single piece tempered glass
Saloon Light	LED lights	LED lights
Side Windows	Sliding glass	Sliding glass
Steering	Power Steering	Power Steering
Steering Adjustment	Tilt and telescopic	Tiltable
Step Lamp	Yes	Yes
Sun Visor	Roll down type	Roll down type
Telematics	No	Optional

Safetyof

ABS	Yes	Yes
Anti Roll Bar	Rear only
Door Alarm	Yes	Yes
Driver Area Partition	Partition with MS Pipe
Fire Extinguisher	Yes	Yes
First Aid Box	Yes	Yes
Fog Light	No	No
Guide Grab Rail	Yes	Yes
Peep Window	Yes	Yes
Retarder	No	No
Roof Hatch	No	No
Seat Belts	Flap type on front seats
Service Brakes	Air brakes	Air brakes With auto slack adjuster
Step Lamp	Yes	Yes
Tubeless Tyres	No	No
Window Guardrail	Yes	Yes

Key Comparison of Eicher 10.90L CNG : Starline School 40 / 51 Seater vs SML Isuzu S7 CNG School 5100: 38 / 52 / 59 Seater

Compare Eicher 10.90L CNG : Starline School 40 / 51 Seater bus vs SML Isuzu S7 CNG School 5100: 38 / 52 / 59 Seater bus in detail at TrucksBuses.com. Eicher 10.90L CNG : Starline School 40 / 51 Seater with a engine delivers , whereas SML Isuzu S7 CNG School 5100: 38 / 52 / 59 Seater produces from a engine. Fuel tank capacity is for Eicher 10.90L CNG : Starline School 40 / 51 Seater and for SML Isuzu S7 CNG School 5100: 38 / 52 / 59 Seater. Review seating, engine, mileage, features and price before you buy. Prefer Eicher 10.90L CNG : Starline School 40 / 51 Seater for its power and tank setup on longer staff or school routes; choose SML Isuzu S7 CNG School 5100: 38 / 52 / 59 Seater when its engine and capacity fit your passenger duty better.
