Compare BharatBenz 1017 vs Tata LPO 11.6/54
Compare bharatbenz 1017 vs tata lpo 11 6 54 bus chassis
BharatBenz 1017

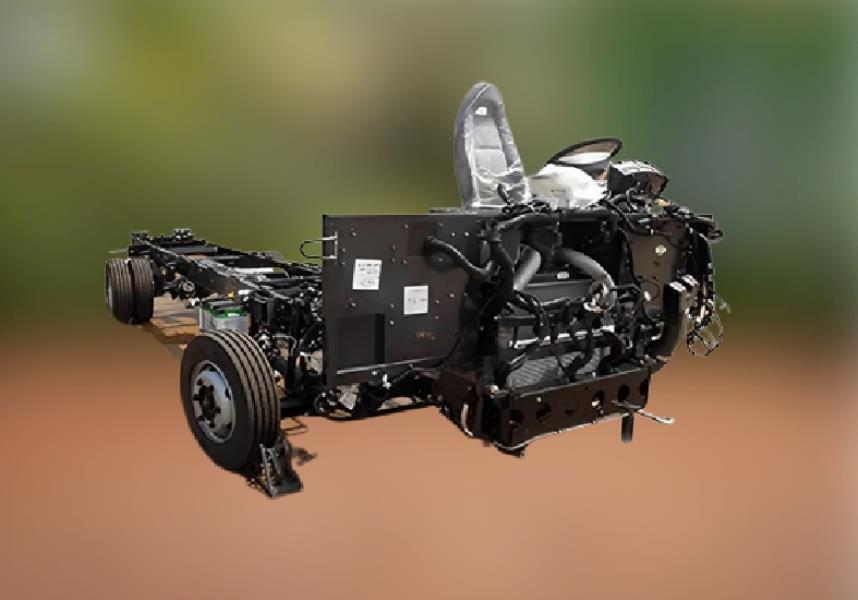

Tata LPO 11.6/54
Overviewof
| Overall Length |
8493 mm |
10440 mm |
|
| GVW (Kg) |
10600 Kg |
10200 Kg |
|
| Axle Configuration |
4x2 |
4X2 |
|
| Engine |
4D34i CRDI |
3.3L NG BS6 Engine |
|
| Power |
170 HP@2500 rpm |
160 HP@2600 rpm |
|
| Torque |
520 Nm@1500 rpm |
475 Nm@1600-2200 rpm |
|
| Transmission |
6 speed manual (6F+1R)
With overdrive gear |
|
|
| Variants |
Chassis without face-cowl |
|
|
| Suitable Applications |
School, Staff, Tourist |
|
|
| Warranty |
3 Years / 3 Lakh Km |
4 Years / 4 Lakh Km on driveline |
|
| Service Interval |
40,000 Km (Oil change) |
|
|
| Additional |
AC Compressor (TM43) |
|
|
Engine & Performanceof
| Engine |
4D34i CRDI |
3.3L NG BS6 Engine |
|
| Fuel Injection System |
Unitised fuel injection pump |
Common Rail |
|
| Engine Displacement |
3907 cc |
3300 cc |
|
| Engine Location |
Front |
Front |
|
| Power |
170 HP@2500 rpm |
160 HP@2600 rpm |
|
| Torque |
520 Nm@1500 rpm |
475 Nm@1600-2200 rpm |
|
| Clutch |
325 mm dia
Organic |
330 mm dia
Single plate dry type |
|
| Transmission |
6 speed manual (6F+1R)
With overdrive gear |
|
|
| Gearbox |
M036, Synchromesh type
Cable shift |
GBS550 with cable shift |
|
| Emission Norms Compliance |
BS6 |
BS6 OBD2 |
|
| Fuel Tank Capacity |
Diesel: 160 Litres
Ad Blue: 43 Litres |
160 Litres |
|
| Electricals Battery |
2x12V, 120 Ah |
12V, 75 Ah
65 Amps |
|
Design & Configurationof
| Overall Length |
8493 mm |
10440 mm |
|
| Vehicle Configuration |
Chassis without face-cowl |
|
|
| Chassis Frame |
Ladder type channel with cross members |
|
|
| Axle Configuration |
4x2 |
4X2 |
|
| Rear Axle |
Fully Floating Type |
|
|
| Front Suspension |
Parabolic leaf springs
With telescopic shock absorbers |
Parabolic Suspension |
|
| Rear Suspension |
Parabolic leaf springs
With telescopic shock absorbers |
Parabolic Suspension |
|
| Anti Roll Bar |
Front and Rear |
Front and Rear |
|
| Tyres |
235/75 R17.5
Tubeless radial
6+1 tyres |
235/75R17.5 |
|
| Wheelbase |
5300 mm |
5400 mm |
|
| Turning Circle Diameter |
18.6 m |
|
|
Features & Comfortof
| Driver Seat |
4 way adjustable |
4 way adjustable |
|
| Steering |
Power Steering |
Power Steering |
|
| Steering Adjustment |
Tilt and telescopic |
Tilt & telescopic |
|
| Instrument Cluster |
Digital instrument cluster |
Analog
With LED display |
|
| Automatic Transmission |
No |
No |
|
Safetyof
| Service Brakes |
Air brakes |
Air brakes |
|
| Anti Roll Bar |
Front and Rear |
Front and Rear |
|
Key Comparison of BharatBenz 1017 vs Tata LPO 11.6/54
Compare BharatBenz 1017 bus vs Tata LPO 11.6/54 bus in detail at TrucksBuses.com ! BharatBenz 1017 bus with engine gives a power of whereas Tata LPO 11.6/54 bus produces of power and comes with a engine. The fuel tank capacity of BharatBenz 1017 bus is whereas Tata LPO 11.6/54 bus is . You can check detailed bus comparison of BharatBenz 1017 bus and Tata LPO 11.6/54 bus on the basis of engine, specifications, seating capacity, price, mileage and features.
