Compare Ashok Leyland U 4923 TT vs Eicher Pro 6049
Compare ashok leyland u 4923 tt vs eicher pro 6049
Ashok Leyland U 4923 TT

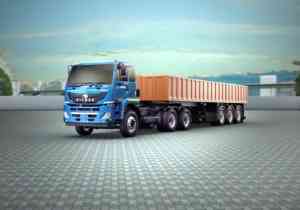

Eicher Pro 6049
Overviewof
GCW (Kg) |
49000 Kg |
49000 Kg |
|
Axle Configuration |
6x4 |
6x4 |
|
Engine |
H Series 5.7L CRS iEGR Technology |
VEDX8 SCR technology |
|
Power |
225 HP@2400 rpm |
250 HP@2200 rpm |
|
Torque |
800 Nm@1300-1900 rpm |
950 Nm @1100-1700 RPM |
|
Transmission |
9 speed manual (8F+1CR+1R) |
9 speed manual (9F+1R);\r\nZF 1110 TD 9S |
|
Warranty |
4 Years / 4 Lakh Km |
4 years unlimited km on driveline |
|
Service Interval |
80,000 Km (Oil change) |
60,000 Km (Oil change) |
|
Additional |
N/A |
Fuel coaching MBooster+ Technology for multi drive mode |
|
Engine & Performanceof
Engine |
H Series 5.7L CRS iEGR Technology |
VEDX8 SCR technology |
|
Fuel Injection System |
Common Rail |
Common Rail |
|
Engine Displacement |
5660 cc |
7698 cc |
|
Power |
225 HP@2400 rpm |
250 HP@2200 rpm |
|
Torque |
800 Nm@1300-1900 rpm |
950 Nm @1100-1700 RPM |
|
Clutch |
Single plate, 380 mm dia With clutch booster |
430 mm dia With clutch booster |
|
Transmission |
9 speed manual (8F+1CR+1R) |
9 speed manual (9F+1R);\r\nZF 1110 TD 9S |
|
Gearbox |
ZF 9S1110 |
ZF 9S 1115 |
|
Max Speed |
80 Kmph |
80 Kmph |
|
Emission Norms Compliance |
BSIV |
BSIV |
|
Fuel Tank Capacity |
400 Litres |
350 Litres |
|
Electricals Battery |
2X12V,130 Ah |
24V |
|
Design & Configurationof
Gross Combination Weight |
49000 Kg |
49000 Kg |
|
Cabin Type |
Twin sleeper cabin |
Sleeper cabin |
|
Cabin Tilt mechanism |
Tiltable Cabin |
Hydraulically tiltable |
|
Chassis Frame |
Ladder type joggled bolted with cross members |
Domex frame With BSK46 cross member |
|
Axle Configuration |
6x4 |
6x4 |
|
Front Axle |
Forged I Beam, Reverse Elliot Type |
Forged I Beam, Reverse Elliot Type |
|
Rear Axle |
Fully Floating,Single Reduction hypoid axle |
Meritor, Single reduction tandem axle |
|
Front Suspension |
Parabolic leaf springs With telescopic shock absorbers |
Semi-elliptical leaf springs |
|
Rear Suspension |
Semi-elliptical leaf springs Bogie suspension (Optional) |
Semi-elliptical leaf springs |
|
Tyres |
10 R 20-16 PR Radial tyres |
10R20 - 16PR |
|
Wheelbase |
3900 mm |
4000 mm |
|
Turning Circle Diameter |
15.5 m |
15.7 m |
|
Ground Clearance |
260 mm |
262 mm |
|
Overall Length |
6820 mm |
6980 mm |
|
Overall Width |
2445 mm |
2560 mm |
|
Overall Height |
N/A |
2932 mm |
|
Chassis Depth |
275 mm |
285 mm |
|
Chassis Flange width |
90 mm |
76 mm |
|
Chassis Thickness |
8 mm |
6 mm |
|
Features & Comfortof
Cabin Suspension |
Fully suspended |
Fully suspended |
|
Steering |
Power Steering |
Power Steering |
|
Steering Adjustment |
Tilt and telescopic |
Tilt and telescopic |
|
Driver Seat |
N/A |
6 way adjustable Mechanically suspended |
|
Air Conditioner (AC) |
Optional |
HVAC (Yes) |
|
Quarter Ventilation Glass |
Yes |
Yes |
|
Instrument Cluster |
Analog With LED display |
Digital With fuel coaching |
|
Mobile Charging Point |
N/A |
Yes |
|
Automatic Transmission |
No |
No |
|
Safetyof
Service Brakes |
Air Brakes, dual line HLP |
Air brakes |
|
Parking Brakes |
Flick valve operated pneumatic Acting on rear wheels |
Pneumatic hand operated |
|
Key Comparison of Ashok Leyland U 4923 TT vs Eicher Pro 6049
Compare Ashok Leyland U 4923 TT vs Eicher Pro 6049 in detail at TrucksBuses.com ! You can check detailed truck comparison of Ashok Leyland U 4923 TT with Eicher Pro 6049 on the basis of engine, specifications, payload, price, mileage and features. Ashok Leyland U 4923 TT with a gross weight of , gives a power of whereas Eicher Pro 6049 produces of power and comes with a GVW of . Powering the Ashok Leyland U 4923 TT truck is cylinder, engine whereas Eicher Pro 6049 gets powered by a cylinder, engine.
