  • Tata Prima LX 3130.K BSIV

Quick Search

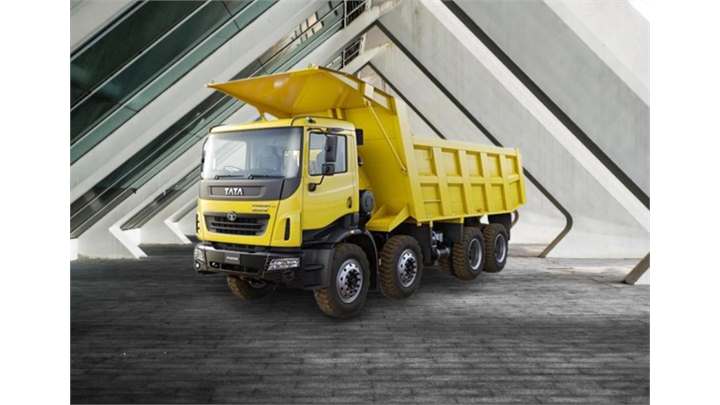

Overview of Tata Prima LX 3130.K
GVW 31000 Kg
Axle Configuration 8x4
Engine
  • Cummins ISBe 6.7
  • SCR Technology
Power (Max.) 300 HP@2500 rpm
Torque (Max.) 1100 Nm@1200-1800 rpm
Transmission 9 speed manual (8F+1CR+1R)
Vehicle Configuration Cabin with Scoop body
Load Body Options
  • 19 Cu.M Scoop
  • Rockbody (Hardox)
Warranty
  • 4 Years / 5000 Hrs on driveline
  • 2 Years / 2000 Hrs on vehicle
Service Interval 1500 Hrs (Oil change)
Engine & Performance of Tata Prima LX 3130.K
Engine
  • Cummins ISBe 6.7
  • SCR Technology
Fuel Injection System Common Rail
Engine Displacement 6693 cc
Engine Cylinders 6
Power (Max.) 300 HP@2500 rpm
Torque (Max.) 1100 Nm@1200-1800 rpm
Clutch
  • Single dry plate, 430 mm dia
  • Organic
Transmission 9 speed manual (8F+1CR+1R)
Gearbox ZF 9S 1115 TD
Gradeability 66%
Max Speed 60 Kmph
Emission Norms Compliance BSIV
Fuel Type Diesel
Fuel Tank Capacity 260 Litres
Design & Configuration of Tata Prima LX 3130.K
GVW 31000 Kg
Vehicle Configuration Cabin with Scoop body
Load Body Options
  • 19 Cu.M Scoop
  • Rockbody (Hardox)
Cabin Type Day cab
Cabin Tilt mechanism Tiltable cabin
Chassis Frame Ladder type with cross members
Axle Configuration 8x4
Front Axle
  • Forged I Beam, Reverse Elliot Type
  • Twin steerable axles
Rear Axle
  • Hub reduction axle
  • RAR: 7.246
Front Suspension Parabolic leaf springs
Rear Suspension Bogie suspension
Anti-Roll Bar Front and Rear
Tyres 12x24 - 20 PR Mining
Wheelbase 5250 mm
Ground Clearance 358 mm
Chassis Depth 320 mm
Chassis Flange width 90 mm
Chassis Thickness 8 mm

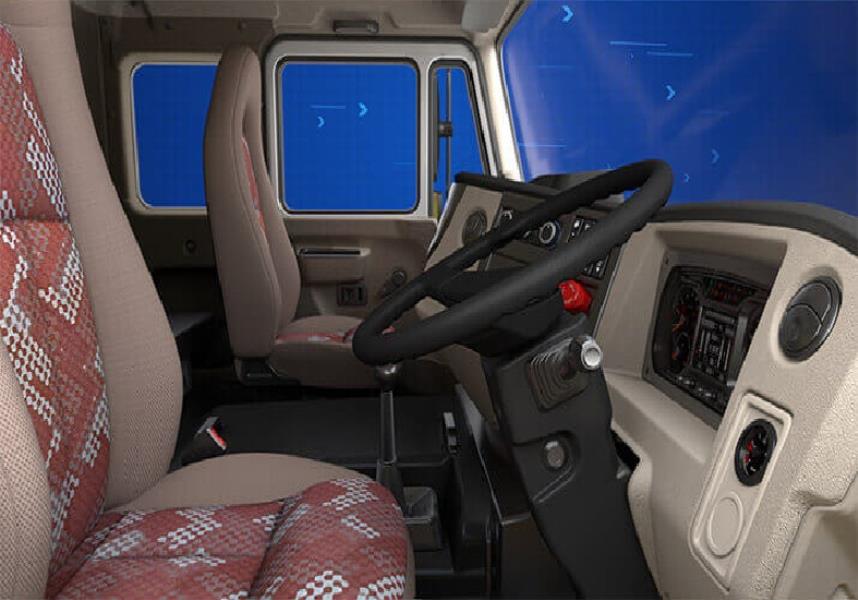

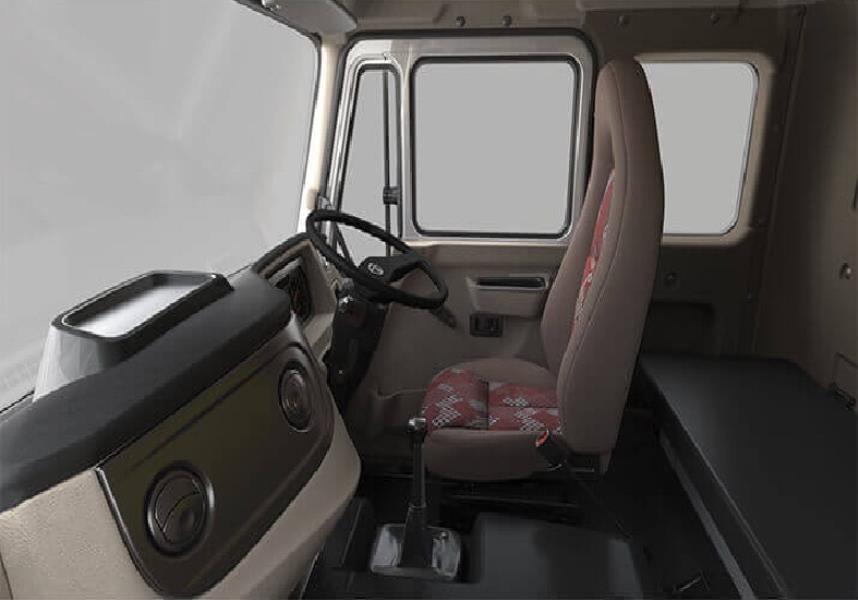

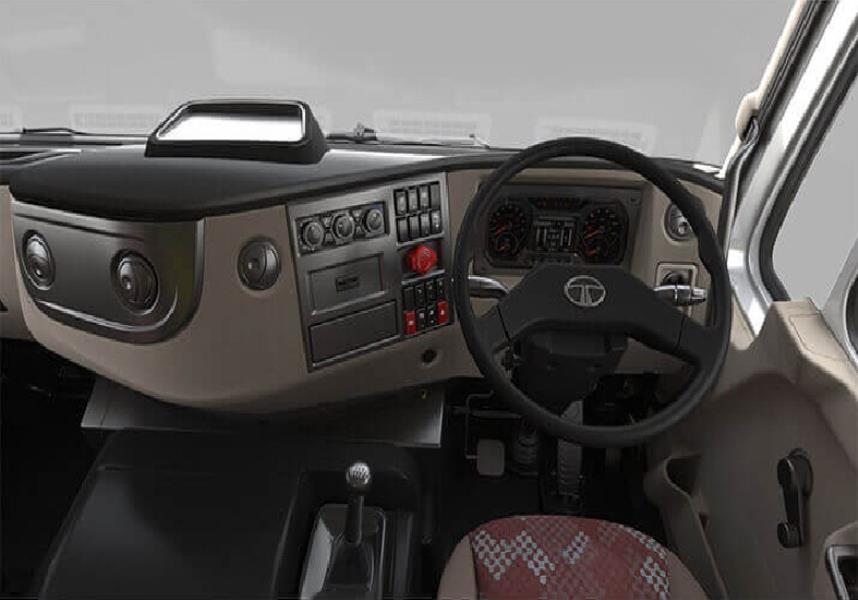

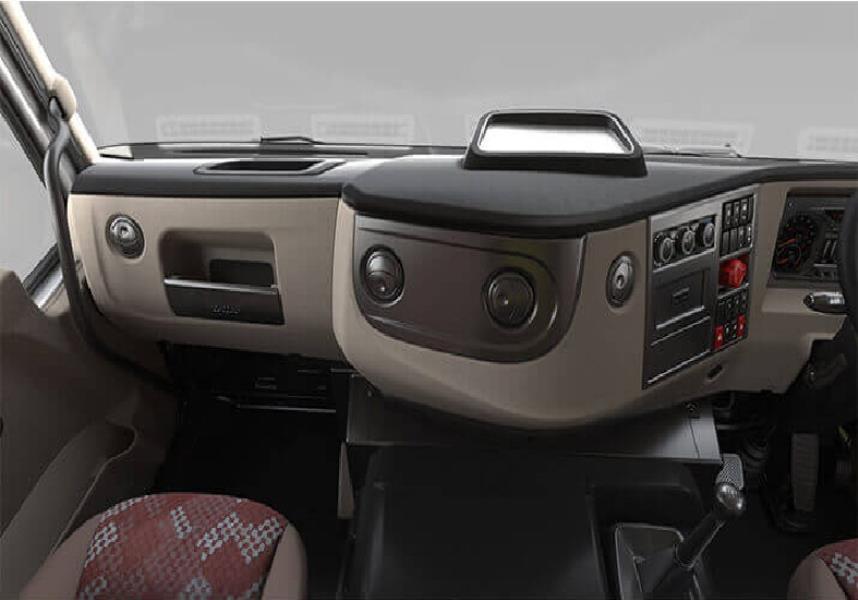

Features & Comfort in Tata Prima LX 3130.K
Cabin Suspension Fully suspended
Steering Type Power steering
Steering Adjustment
  • Tilt and telescopic
  • Electronic control
Driver Seat Type 6 way adjustable
Air Conditioner (A/C) Yes
Openable Quarter Ventilation Glass No
Instrument Cluster Digital
Telematics / GPS Tracking Yes
Power Windows No
Music System No
Bottle Holder Yes
Automatic Transmission No
Cruise Control No
Safety in Tata Prima LX 3130.K
Service Brakes Air Brakes
Exhaust Brake Yes
ABS Yes
Anti-Roll Bar Front and Rear
Differential Lock Yes
Seat Belts Yes
Reverse Parking Buzzer Yes
Fog Light Provision
Tubeless Tyres No
