Tata Ultra 1412

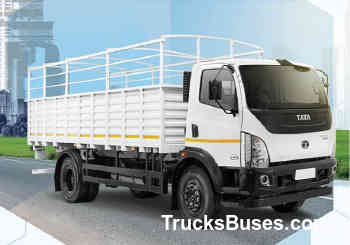

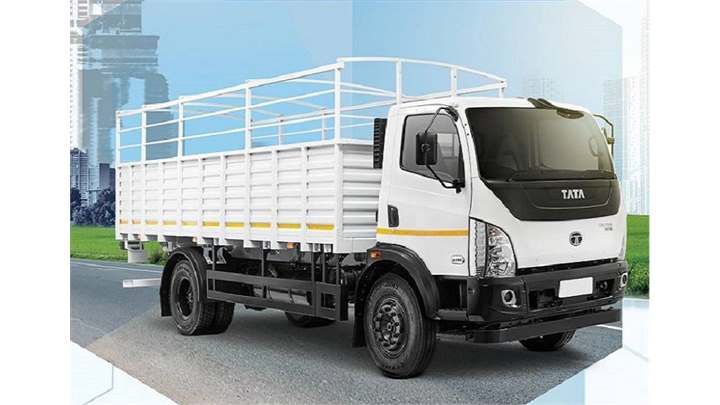

Tata Ultra 1412 is the latest Tata Truck in ICV category based on Ultra platform. This new Tata truck offers a higher 13850 Kg GVW and comes equipped with best in class features. Powering this new Tata truck is renowned 497 TCIC engine that produces 125 HP. For driver cabin, Tata Ultra 1412 comes with a modern day cab with host of utility features like Tilt & telescopic steering, adjustable driver seat, mobile charging point, digital instrument cluster, dashboard mounted gear lever and walk through cabin. Tata Ultra 1412 is equipped with parabloic leaf springs in front for class leading comfort and to cater to different applications, this Tata truck is offered in 3 load body length options. Power steering, air brakes are a standard feature in Tata Ultra 1412. Warranty offered on Tata 1412 Ultra is similar to other ICV trucks i.e. 3 years / 3 lakh km on driveline.

Overview of Tata Ultra 1412
GVW 13850 Kg
Engine 497 DICR
Power (Max.) 123 HP@2400 rpm
Torque (Max.) 400 Nm@1300-1600 rpm
Axle Configuration 4x2
Vehicle Configuration
  • Cabin and chassis
  • Cabin with load body options
Load Body Options
  • Fixed Side Deck
  • High Side Deck
Loading Span
  • 17.5 ft
  • 20.5 ft
  • 22.6 ft
Warranty 3 Years / 3 Lakh Km on driveline
Service Interval 40,000 Km (Oil change)
Engine & Performance of Tata Ultra 1412
Engine 497 DICR
Fuel Injection System
  • Inline type
  • With double Plunger, Double Cam Lobe
Engine Displacement 3783 cc
Engine Cylinders 4
Power (Max.) 123 HP@2400 rpm
Torque (Max.) 400 Nm@1300-1600 rpm
Clutch 330 mm dia
Transmission 6 speed manual (6F+1R)
Gearbox GBS 550, Synchromesh type
Gradeability 23.3%
Max Speed 80 Kmph
Emission Norms Compliance BSIV
Fuel Type Diesel
Fuel Tank Capacity 160 Litres
Electricals / Battery 12V, 120 Ah
Design & Configuration of Tata Ultra 1412
GVW 13850 Kg
Kerb Weight
  • 4420 Kg (3900 wb FSD)
  • 4635 Kg (4530 wb FSD)
  • 4750 Kg (4920 wb FSD)
Vehicle Configuration
  • Cabin and chassis
  • Cabin with load body options
Load Body Options
  • Fixed Side Deck
  • High Side Deck
Loading Span
  • 17.5 ft
  • 20.5 ft
  • 22.6 ft
Cabin Type Day cab
Cabin Tilt mechanism Hydraulically tiltable
Chassis Frame Straight frame with bolted design
Axle Configuration 4x2
Front Axle Forged I Beam, Reverse Elliot Type
Rear Axle Fully Floating, Single reduction hypoid gears
Front Suspension
  • Parabolic leaf spring
  • With telescopic shock absorbers
Rear Suspension
  • Semi-elliptical leaf springs
  • With semi-elliptical auxiliary springs
Tyres
  • 8.25R20–16 PR
  • Radial tyres
  • 6+1 tyres
Wheelbase
  • 3900 mm
  • 4530 mm
  • 4920 mm
Turning Circle Diameter 18.6 m
Ground Clearance 225 mm
Overall Length
  • 7410 mm (3900 wb HSD)
  • 8365 mm (4530 wb HSD)
  • 8995 mm (4920 wb HSD)
Overall Width 2440 mm
Overall Height 3055 mm (HSD)
Chassis Depth 250 mm
Chassis Thickness 7 mm
Features & Comfort in Tata Ultra 1412
Cabin Suspension No
Steering Type
  • Power Steering
  • With drooping characteristics for stability at high speed
Steering Adjustment Tilt and telescopic
Driver Seat Type 6 way adjustable
Air Conditioner (A/C) Optional
Openable Quarter Ventilation Glass No
Instrument Cluster
  • Digital
  • With live Kmpl indicator
  • Distance to empty
  • Neutral position
Telematics / GPS Tracking Optional
Power Windows No
Music System No
Mobile Charging Point Yes
Bottle Holder Yes
Automatic Transmission No
Cruise Control No
Additional Digital clock
Safety in Tata Ultra 1412
Service Brakes Air brakes
Parking Brakes Hand operated
Exhaust Brake Yes
ABS Yes
Anti-Roll Bar Front only
Differential Lock No
Seat Belts Yes
Reverse Parking Buzzer Yes
Fog Light Provision
Tubeless Tyres No
