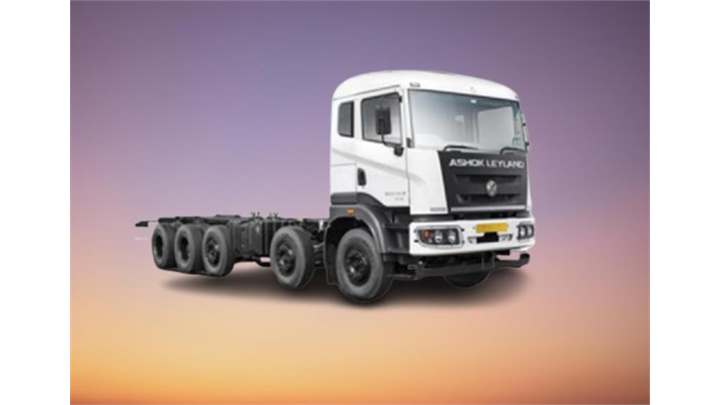

Overview of Ashok Leyland Captain 3718

GVW 37000 Kg
Engine
  • H Series 5.7L CRS
  • iEGR Technology
Power (Max.) 180 HP@2400 rpm
Torque (Max.) 660 Nm@1200-1900 rpm
Axle Configuration 10x2
Vehicle Configuration
  • Cabin and chassis
  • Cabin with load body options
Load Body Options
  • High Side Deck
  • Fixed Side Deck
Loading Span
  • 27.5 ft
  • 29.5 ft
Warranty 4 Years / 4 Lakh Km
Service Interval 80,000 Km (Oil change)
Additional
  • Available with Pusher lift axle
  • Unitized wheel bearing (Optional)

Engine & Performance of Ashok Leyland Captain 3718

Engine
  • H Series 5.7L CRS
  • iEGR Technology
Fuel Injection System Common Rail
Engine Displacement 5660 cc
Engine Cylinders 6
Power (Max.) 180 HP@2400 rpm
Torque (Max.) 660 Nm@1200-1900 rpm
Clutch
  • 380 mm dia
  • With clutch booster
Transmission 8 speed manual
Gearbox 8S1110
Gradeability 16.3%
Max Speed 78 Kmph
Emission Norms Compliance BSIV
Fuel Type Diesel
Fuel Tank Capacity 400 Litres
Electricals / Battery 24V, 150 Ah (For AC)

Design & Configuration of Ashok Leyland Captain 3718

GVW 37000 Kg
Vehicle Configuration
  • Cabin and chassis
  • Cabin with load body options
Load Body Options
  • High Side Deck
  • Fixed Side Deck
Loading Span
  • 27.5 ft
  • 29.5 ft
Cabin Type Sleeper cabin
Cabin Tilt mechanism Hydraulic tilt
Chassis Frame Ladder type joggled bolted with cross members
Axle Configuration 10x2
Front Axle
  • Forged I Beam, Reverse Elliot Type
  • Twin steer axle
Rear Axle
  • Single-speed hypoid gears axle
  • Pusher Lift axle
Front Suspension Semi elliptical leaf springs
Rear Suspension Non-reactive suspension
Tyres
  • 10R20-16 PR Radial
  • 14+1 tyres
  • Michelin X-Guard tyres (available in Plus Variant)
Wheelbase 6600 mm
Turning Circle Diameter 23.7 m
Ground Clearance 260 mm
Overall Length
  • 10450 mm
  • 11052 mm
Overall Width 2432 mm
Front Overhang 1350 mm
Rear Overhang
  • 1790 mm
  • 2350 mm
Front Track 2054 mm
Rear Track 1870 mm
Chassis Depth 275 mm
Chassis Flange width 75 mm
Chassis Thickness 7 mm

Features & Comfort in Ashok Leyland Captain 3718

Cabin Suspension Fully suspended
Steering Type Power Steering
Steering Adjustment Tilt and telescopic
Driver Seat Type 6 way adjustable
Air Conditioner (A/C) Optional
Openable Quarter Ventilation Glass No
Instrument Cluster
  • Digital
  • With distance to empty indicator
Telematics / GPS Tracking Yes
Power Windows No
Music System Yes
Mobile Charging Point Yes
Bottle Holder Yes
Automatic Transmission No
Cruise Control No

Safety in Ashok Leyland Captain 3718

Service Brakes Air brakes
Parking Brakes
  • Pneumatic flick valve operated
  • Acting on rear wheels
ABS Yes
Differential Lock No
Seat Belts Yes
Fog Light Yes
Tubeless Tyres No
