Compare Tata Ultra 1518 vs BharatBenz 1617R

Compare tata ultra 1518 vs bharatbenz 1617r


https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/Tata Ultra 1518 Truck ICV.jpg

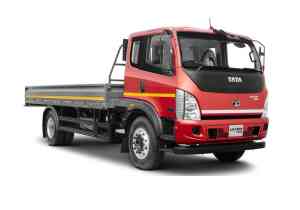

Tata Ultra 1518

https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/BharatBenz 1617R BSIV.jpg

BharatBenz 1617R


  • Overviewof tata ultra 1518 vs bharatbenz 1617r

  • Power
    177 HP@2400 rpm
    168 HP
  • Torque
    590 Nm@1000-2000 rpm
    520 Nm
  • Engine
    NG 5L DICR
    Turbocharged Intercooled
    EGR Technology
    4D34i
  • GVW (Kg)
    15710 Kg
    16200 Kg
  • Payload
    9.75 Tons* (20 ft HSD)
  • Variants
    Cabin and chassis
    Cabin with load body
    Cabin and chassis
    Cabin with load body
  • Body Length
    17 ft
    20 ft
    22 ft
    24 ft
    20 ft
    24 ft
    31 ft
  • Axle Configuration
    4x2
    4x2
  • Warranty
    3 Years / 3 Lakh Km on driveline
    3 years unlimited km on driveline
  • Service Interval
    60000 Km
    40,000 Km (Oil change)
  • Engine & Performanceof tata ultra 1518 vs bharatbenz 1617r

  • Engine
    NG 5L DICR
    Turbocharged Intercooled
    EGR Technology
    4D34i
  • Power
    177 HP@2400 rpm
    168 HP
  • Torque
    590 Nm@1000-2000 rpm
    520 Nm
  • Fuel Injection System
    Common Rail
    Unitised fuel injection pump
  • Displacement
    5005 cc
    3907 cc
  • Cylinders
    4
    4
  • Transmission
    6 speed manual (6F+1R)
    Dashboard mounted gear lever
    6 speed (6F+1R)
  • Gearbox
    GBS 750
    Cable shift
    G85, Synchromesh
  • Clutch
    352 mm dia
    With clutch booster
    362 mm dia
    With clutch booster
  • Gradeability
    27.2%
    23.9% (RAR 5.57)
    26.7% (RAR 6.17)
  • Max Speed
    80 Kmph
    80 Kmph
  • Emission
    BSIV
    BS6
  • Fuel Type
    Diesel
    Diesel
  • Fuel Tank
    160 Litres
    Diesel: 214 Litres
    Ad Blue: 43 / 36 Litres
    With diesel anti-theft strain
  • Battery
    24V, 2x75 Ah
    Alternator: 50 Amps
    24V, 75 Ah/100Ah
  • Design & Configurationof tata ultra 1518 vs bharatbenz 1617r

  • Variants
    Cabin and chassis
    Cabin with load body
    Cabin and chassis
    Cabin with load body
  • Body Length
    17 ft
    20 ft
    22 ft
    24 ft
    20 ft
    24 ft
    31 ft
  • GVW
    15710 Kg
    16200 Kg
  • Kerb Weight
    6010 Kg
  • Axle Configuration
    4x2
    4x2
  • Cabin Type
    Sleeper cabin
    Sleeper cabin
  • Cabin Tilt mechanism
    Hydraulically tiltable
    Hydraulically tiltable
  • Chassis Frame
    Domex frame with bolted design
    Ladder type channel with cross members
  • Front Axle
    Forged I Beam, Reverse Elliot Type
    IF 6.0, Reverse Elliot Type
  • Rear Axle
    Fully Floating, Single reduction hypoid gears
    Banjo type
    MS145
  • Front Suspension
    Parabolic leaf spring
    With telescopic shock absorbers
    Semi elliptical leaf springs
  • Rear Suspension
    Semi-elliptical leaf springs
    With parabolic auxiliary springs
    Semi elliptical leaf springs
  • Anti Roll Bar
    Front only
    Front and Rear (Optional)
  • Tyres
    9R20-16 PR
    Radial tyres
    6+1 tyres
    10R20 Radial
    6+1 tyres
  • Wheelbase
    4530 mm
    4920 mm
    5300 mm
    5100 mm
    5900 mm
    6700 mm
  • Turning Circle Diameter
    15.7 m (4530 mm)
    17 m (4920 mm)
    18.9 m (5300 mm)
    17.3 m (5100 wb)
    19.3 m (5900 wb)
    22.6 m (6700 wb)
  • Ground Clearance
    228 mm
    270 mm
  • Overall Length
    8600 m m (5100 wb)
    9815 mm (5900 wb)
    11995 mm (6700 wb)
  • Overall Width
    2335 mm
  • Load Body Width
    2286 mm
  • Overall Height
    2600 mm
  • Front Overhang
    1335 mm
  • Rear Overhang
    2165 mm (5100 wb)
    2580 mm (5900 wb)
    3960 mm (6700 wb)
  • Chassis Depth
    250 mm
    272 mm
  • Chassis Flange width
    70 mm
  • Chassis Thickness
    7 mm
    6 mm
  • Features & Comfortof tata ultra 1518 vs bharatbenz 1617r

  • Steering Type
    Power Steering
    Power Steering
  • Steering Adjustment
    Tilt and telescopic
    Tilt and telescopic
  • Driver Seat
    6 way adjustable
    4 way adjustable
  • Instrument cluster
    Digital
    With live Kmpl indicator
    Distance to empty
    Neutral position
    Digital with indicators for:
    Mileage
    Trip Meter
    Distance to empty
  • Automatic Transmission
  • Telematics
    Telematics unit as standard fitment
    Service activation standard
  • Air Conditioner AC
    HVAC (Optional)
    HVAC (Optional)
  • Quarter Ventilation Glass
  • Mobile Charging Point
  • Bottle Holder
  • Music System
  • Cruise Control
  • Safetyof tata ultra 1518 vs bharatbenz 1617r

  • Service Brakes
    Air brakes
    Air brakes
  • Parking Brakes
    Hand operated
    Spring Actuated with Hand Brake Valve
  • Exhaust Brake
  • ABS
  • Seat Belts
  • Fog Light
    Provision
  • Anti Roll Bar
    Front only
    Front and Rear (Optional)
  • Tubeless Tyres
  • Differential Lock
  • Reverse Gear Buzzer

Key Comparison of Tata Ultra 1518 vs BharatBenz 1617R

Compare Tata Ultra 1518 vs BharatBenz 1617R in detail at TrucksBuses.com ! You can check detailed truck comparison of Tata Ultra 1518 with BharatBenz 1617R on the basis of engine, specifications, payload, price, mileage and features. Tata Ultra 1518 with a gross weight of 15710 Kg, gives a power of 177 HP@2400 rpm whereas BharatBenz 1617R produces 168 HP of power and comes with a GVW of 16200 Kg. Powering the Tata Ultra 1518 truck is 5005 cc 4 cylinder, 4D34i engine whereas BharatBenz 1617R gets powered by a 4 cylinder, 3907 cc engine.
