Compare Tata SK 1613 Hymiler vs Man CLA 16.250 EVO 4x2
Compare tata sk 1613 hymiler vs man cla 16 250 evo 4x2

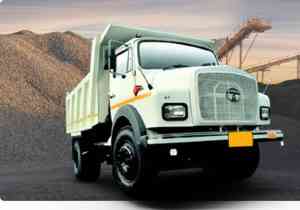

Tata SK 1613 Hymiler
Man CLA 16.250 EVO 4x2
-
Overviewof tata sk 1613 hymiler vs man cla 16 250 evo 4x2
-
Power
134 HP@2400 rpm
255 HP@2300 rpm
-
Torque
490 Nm@1400 rpm
950 Nm@1100-1850 rpm
-
Engine
Tata 697 TCIC CRDi
Man D-0836
-
GVW (Kg)
16200 Kg
16200 Kg
-
Variants
Face-cowl and chassis Cabin and chassis Cabin with Box body Cabin with Drop Side Box Cabin with Scoop body
Cabin with rock body
-
Load Body Options
10 Cu.M
-
Axle Configuration
4x2
4x2
-
Transmission
6 speed manual (6F+1R)
6 Speed (5F+1R)
-
Warranty
6 Years / 6000 Hrs on driveline 3 Years / 3000 Hrs on vehicle
-
Service Interval
500 Hrs
-
Engine & Performanceof tata sk 1613 hymiler vs man cla 16 250 evo 4x2
-
Engine
Tata 697 TCIC CRDi
Man D-0836
-
Power
134 HP@2400 rpm
255 HP@2300 rpm
-
Torque
490 Nm@1400 rpm
950 Nm@1100-1850 rpm
-
Fuel Injection System
Common Rail
Common Rail
-
Displacement
5675 cc
6900 cc
-
Cylinders
6
6
-
Transmission
6 speed manual (6F+1R)
6 Speed (5F+1R)
-
Gearbox
GBS 600
Synchromesh
-
Clutch
Single dry plate, 352 mm dia
Single plate, Power assisted
-
Gradeability
26%
77%
-
Max Speed
79 Kmph
60 Kmph
-
Emission
BSIV
BS4
-
Fuel Type
Diesel
Diesel
-
Fuel Tank
150 Litres 225 Litres (4225 wb)
200 Litres
-
Battery
2x12V - 150 Ah
2x12 V, 100 Ah
-
Design & Configurationof tata sk 1613 hymiler vs man cla 16 250 evo 4x2
-
Variants
Face-cowl and chassis Cabin and chassis Cabin with Box body Cabin with Drop Side Box Cabin with Scoop body
Cabin with rock body
-
Load Body Options
10 Cu.M
-
GVW
16200 Kg
16200 Kg
-
Kerb Weight
8335 Kg
-
Axle Configuration
4x2
4x2
-
Cabin Type
SFC Day cab
Day cab
-
Cabin Tilt mechanism
NA
Hydraulically tiltable
-
Chassis Frame
Ladder type with cross members
C channel rolled section
-
Front Axle
Forged I Beam, Reverse Elliot Type
Drop Forged I-Beam type, Maintence free Hub Bearings
-
Rear Axle
RA 109 RX RAR 5.57
-
Front Suspension
Semi-elliptical leaf springs
Semi elliptical leaf springs With double acting shock absorbers
-
Rear Suspension
Semi-elliptical leaf springs
2 stage semi elliptical leaf springs
-
Tyres
10x20 - 16PR Nylon / Crossply / Mining tyre
11x20
-
Wheelbase
3225 mm 3625 mm 4225 mm
3600 mm
-
Turning Circle Diameter
13.6 m
-
Ground Clearance
239 mm
292 mm (Front) 327 mm (Rear)
-
Overall Length
6100 mm
6012 mm
-
Overall Width
2434 mm
-
Overall Height
2875 mm
3038 mm
-
Front Overhang
1186 mm
1362 mm
-
Rear Overhang
960 mm (3625 wb)
1050 mm
-
Front Track
2075 mm
-
Rear Track
1800 mm
-
Chassis Depth
223 mm285 mm (4225 wb)
-
Chassis Flange width
60 mm65 mm (4225 wb)
-
Chassis Thickness
7 mm
-
Features & Comfortof tata sk 1613 hymiler vs man cla 16 250 evo 4x2
-
Steering Type
Power steering
Power Steering
-
Steering Adjustment
Tilt and telescopic
-
Driver Seat
6 way adjustable
6 way adjustable Air suspended
-
Instrument cluster
Analog
Digital With on board diagnostics
-
Cabin Suspension
-
Automatic Transmission
-
Telematics
-
Air Conditioner AC
-
Quarter Ventilation Glass
-
Arm Rests
-
Mobile Charging Point
-
Bottle Holder
-
Music System
-
Cruise Control
-
Safetyof tata sk 1613 hymiler vs man cla 16 250 evo 4x2
-
Service Brakes
Air Brakes
Air brakes Electronic Brake System (EBS)
-
Parking Brakes
Spring actuated
Yes Electronic parking brake activation
-
ABS
-
Seat Belts
-
Fog Light
-
Anti Roll Bar
-
Tubeless Tyres
-
Reverse Gear Buzzer
Key Comparison of Tata SK 1613 Hymiler vs Man CLA 16.250 EVO 4x2
Compare Tata SK 1613 Hymiler vs Man CLA 16.250 EVO 4x2 in detail at TrucksBuses.com ! You can check detailed truck comparison of Tata SK 1613 Hymiler with Man CLA 16.250 EVO 4x2 on the basis of engine, specifications, payload, price, mileage and features. Tata SK 1613 Hymiler with a gross weight of 16200 Kg, gives a power of 134 HP@2400 rpm whereas Man CLA 16.250 EVO 4x2 produces 255 HP@2300 rpm of power and comes with a GVW of 16200 Kg. Powering the Tata SK 1613 Hymiler truck is 5675 cc 6 cylinder, Man D-0836 engine whereas Man CLA 16.250 EVO 4x2 gets powered by a 6 cylinder, 6900 cc engine.
