Compare Eicher 10.90 L CNG vs Eicher Pro 3009 H CNG
Compare eicher 10 90 l cng vs eicher pro 3009 h cng
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/298_0585061945c240408e4ca22933bbbc6d298_Eicher-1090-L-CNG-bus-chassis-removebg-preview.png]()

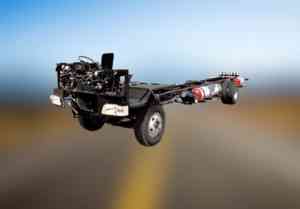

Eicher 10.90 L CNG
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/7854_2a1754878e8b4862a0a4c398723bdcbfpro3009cng (2).png]()
Eicher Pro 3009 H CNG
-
Engine & Performanceof eicher 10 90 l cng vs eicher pro 3009 h cng
-
Engine
E483 CNG
E494
-
Power
83 HP@3200 rpm
134 HP@2400 rpm
-
Torque
230 Nm@1600 rpm
450 Nm@1400-2000 rpm
-
Displacement
3298 cc
3770 cc
-
Cylinders
4
4
-
Engine Location
Front
Front
-
Transmission
6 speed (6F+1R)
-
Gearbox
Synchromesh type With hybrid gear shift lever
ET40S6
-
Clutch
275 mm dia
330 mm dia
-
Max Speed
85 Kmph
-
Emission
BSIV
BS6
-
Fuel Type
CNG
CNG
-
Fuel Tank
500 Litres
440 Litres
-
Battery
12V, 130 Ah 75 Amps
Non AC: 12V, 130Ah AC: 24V, 130Ah x 2
-
Design & Configurationof eicher 10 90 l cng vs eicher pro 3009 h cng
-
Variants
Chassis without face-cowl
-
GVW
8850 Kg
9800 Kg
-
Axle Configuration
4x2
4x2
-
Chassis Frame
Ladder type modular frame
Domex frame
-
Rear Axle
Fully floating Banjo type axle
-
Front Suspension
Semi elliptical leaf springs
Parabolic leaf springs
-
Rear Suspension
Semi elliptical leaf springs
Parabolic leaf springs
-
Anti Roll Bar
Rear only
Front only
-
Tyres
8.25x16 - 16PR 6+1 tyres
235/75 R17.5 6+1 tyres
-
Wheelbase
5165 mm
4320 mm
-
Turning Circle Diameter
17.9 m
-
Ground Clearance
210 mm
165 mm
-
Overall Length
9045 mm
8770 mm
-
Front Overhang
1005 mm
1918 mm
-
Rear Overhang
2875 mm
2532 mm
-
Front Track
1645 mm
-
Rear Track
1525 mm
Key Comparison of Eicher 10.90 L CNG vs Eicher Pro 3009 H CNG
Compare Eicher 10.90 L CNG bus vs Eicher Pro 3009 H CNG bus in detail at TrucksBuses.com ! Eicher 10.90 L CNG bus with 3298 cc E494 engine gives a power of 83 HP@3200 rpm whereas Eicher Pro 3009 H CNG bus produces 134 HP@2400 rpm of power and comes with a 3770 cc engine. The fuel tank capacity of Eicher 10.90 L CNG bus is 500 Litres whereas Eicher Pro 3009 H CNG bus is 440 Litres. You can check detailed bus comparison of Eicher 10.90 L CNG bus and Eicher Pro 3009 H CNG bus on the basis of engine, specifications, seating capacity, price, mileage and features.
