  • Tata LP 712 : Starbus Marcopolo 32 Seater

Quick Search

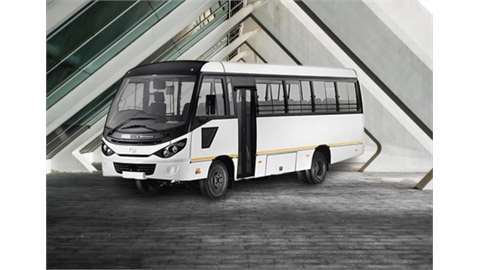

Overview of Tata LP 712 : Starbus Ex 32 Seater

Seating Capacity 32+D
Engine 497 TCIC CRDI
Power (Max.) 123 HP@2400 rpm
Torque (Max.) 400 Nm@1300-1500 rpm
GVW 7490 Kg
Suitable Applications Staff, Stage carriage
Warranty
  • 3 Years / 3 Lakh Km on driveline
  • 1.5 Years / 1.5 Lakh Km on body
Service Interval
  • 20,000 Km (Short route)
  • 40,000 Km (Long route)

Engine & Performance of Tata LP 712 : Starbus Ex 32 Seater

Engine 497 TCIC CRDI
Fuel Injection System Common rail
Engine Displacement 3783 cc
Engine Cylinders 4
Engine Location Front
Power (Max.) 123 HP@2400 rpm
Torque (Max.) 400 Nm@1300-1500 rpm
Clutch
  • 310 mm dia
  • With clutch booster
Transmission 6 speed manual (6F+1R)
Gearbox GBS 550 with cable shift
Max Speed 110 Kmph
Emission Norms Compliance BSIV
Fuel Type Diesel
Fuel Tank Capacity 160 Litres
Electricals / Battery
  • 12 V, 150 Ah
  • 65 Amps

Design & Configuration of Tata LP 712 : Starbus Ex 32 Seater

GVW 7490 Kg
Seating Layout 2x2
Seating Capacity 32+D
Body Structure Galvanized tubular structure
Passenger Door Type One jack-knife type
Floor Type Anti-skid vinyl flooring
Chassis Frame Ladder type with cross members
Axle Configuration 4x2
Front Axle Forged I section, Reverse Elliot type
Rear Axle Single speed, Hypoid gears axle
Front Suspension
  • Semi-elliptical leaf springs
  • With telescopic shock absorbers
Rear Suspension
  • Semi-elliptical leaf springs
  • With telescopic shock absorbers
Anti-Roll Bar Front and Rear
Tyres
  • 7.50x16 - 16PR
  • 6+1 tyres
Wheelbase 4200 mm
Turning Circle Diameter 14.6 m
Ground Clearance 210 mm
Overall Length 8150 mm
Overall Width 2200 mm
Overall Height 2800 mm
Internal Height (Saloon) 1900 mm
Front Overhang 1430 mm
Rear Overhang 2520 mm
Front Track 1650 mm
Rear Track 1587 mm

Features & Comfort in Tata LP 712 : Starbus Ex 32 Seater

Steering Type Power Steering
Steering Adjustment Rigid
Instrument cluster
  • Analog
  • With LED display
Automatic Transmission No
Air Conditioner (A/C) Optional
Openable Quarter Ventilation Glass Yes
Sun Visor Flap Type
Front Windshield Single piece laminated glass
Rear Windshield Single piece tempered glass
Side Windows Sliding glass
Hatrack
  • Tubular
  • Modular in AC option
Passenger Seat Type High back seats
Arm Rests Available on front seats
AC Vents
  • Individual adjustable
  • Integrated in hatrack
Mobile Charging Point No
Speakers Provision for fitment
Saloon Light LED lights
Step Lamp Yes
Luggage Space Side luggage boot
Additional Driver fan

Safety in Tata LP 712 : Starbus Ex 32 Seater

Service Brakes Air brakes
ABS Yes
Anti-Roll Bar Front and Rear
Grab Handle Available on each seat
Window Guardrail Yes
Guide/Grab Rail Yes
Driver Area Partition Partition with MS pipe
Door Alarm Yes
Emergency Exit
  • Breakable rear glass with hammer
  • Door at rear RH side
Roof Hatch No
Fire Extinguisher Yes
First Aid Box Yes
Peep Window Yes
Step Lamp Yes
Fog Light Provision
Tubeless Tyres No
Retarder No
