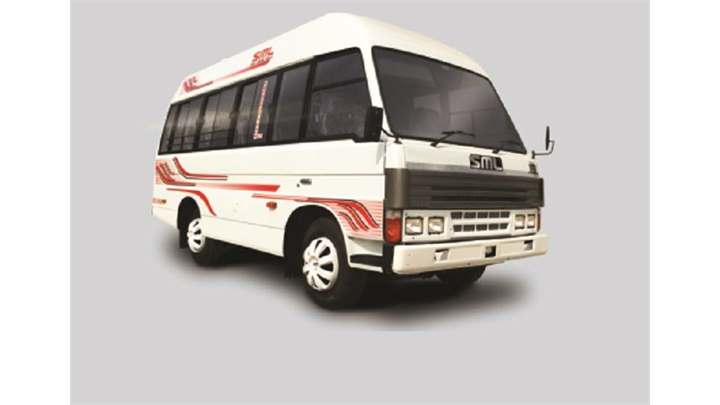

Overview of SML Isuzu EcoMax 2815 : 12 / 13 Seater
Seating Capacity
  • 12+1
  • 13+1
Engine SLT4 CRDI TCIC
Power (Max.) 101 HP@2800 rpm
Torque (Max.) 310 Nm@1500 rpm
GVW 4500 Kg
Suitable Applications Staff, Tourist
Warranty
  • 3 Years / Unlimited Km on engine
  • 1 year on vehicle
Engine & Performance of SML Isuzu EcoMax 2815 : 12 / 13 Seater
Engine SLT4 CRDI TCIC
Fuel Injection System Common rail
Engine Displacement 3455 cc
Engine Cylinders 4
Engine Location Front
Power (Max.) 101 HP@2800 rpm
Torque (Max.) 310 Nm@1500 rpm
Clutch 260 mm dia
Transmission 5 speed manual (5F+1R)
Gearbox Synchromesh
Max Speed 80 Kmph
Emission Norms Compliance BSIV
Fuel Type Diesel
Fuel Tank Capacity 70 Litres
Electricals / Battery 12V, 120 Ah
Design & Configuration of SML Isuzu EcoMax 2815 : 12 / 13 Seater
GVW 4500 Kg
Seating Layout 2x1
Seating Capacity
  • 12+1
  • 13+1
Passenger Door Type One jack-knife type
Chassis Frame Box type
Axle Configuration 4x2
Front Axle Forged I section, Reverse Elliot type
Rear Axle Fully floating Banjo type axle
Front Suspension
  • Semi elliptical leaf springs
  • With telescopic shock absorbers
Rear Suspension
  • Parabolic leaf springs
  • With telescopic shock absorbers
Tyres
  • 7 R 16 - 12PR
  • 4+1 tyres
Wheelbase 2815 mm
Turning Circle Diameter 11 m
Ground Clearance 206 mm
Overall Length 5548 mm
Overall Width 2100 mm
Front Track 1640 mm
Rear Track 1486 mm
Features & Comfort in SML Isuzu EcoMax 2815 : 12 / 13 Seater
Driver Seat Type 4 way adjustable
Steering Type
  • Mechanical type
  • Power Steering (Optional)
Steering Adjustment Tilt and telescopic
Instrument cluster Analog
Automatic Transmission No
Telematics / GPS Tracking No
Air Conditioner (A/C) Yes
Openable Quarter Ventilation Glass No
Front Windshield Single piece laminated glass
Rear Windshield Single piece tempered glass
Side Windows Sliding glass
Hatrack Padded modular
Passenger Seat Type Push back, reclining
Arm Rests Yes
AC Vents Free flow
Mobile Charging Point Yes
Step Lamp Yes
Safety in SML Isuzu EcoMax 2815 : 12 / 13 Seater
Service Brakes Hydraulic brakes
ABS Yes
Grab Handle Available on each seat
Window Guardrail Yes
Guide/Grab Rail No
Emergency Exit Breakable rear glass with hammer
Roof Hatch No
Fire Extinguisher Yes
First Aid Box Yes
Peep Window No
Step Lamp Yes
Fog Light No
Tubeless Tyres No
Retarder No
